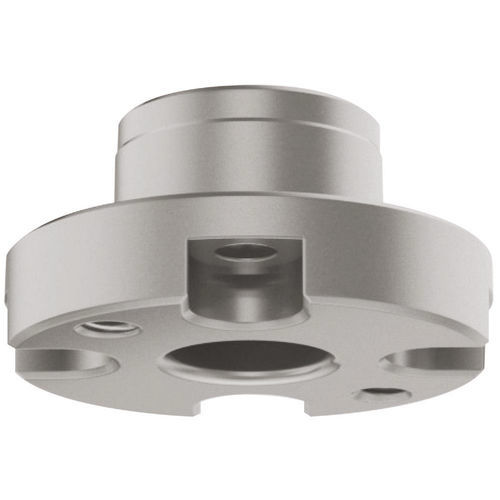

Industrial receiver AMWF-BU series

automation

Product Overview
Used with AMWF-L-S ball-locking locator pins. These Flex locator receptacles are used with AMWF-L-S series ball locking pneumatic Flex locator pins for locating and fastening in a wide range of tooling, fixturing and assembly operations. When air pressure is applied, the balls retract into the pin, allowing the pin to be released from the receptacle. Made from 1045 steel with an electroless nickel plated finish.

Compatibility

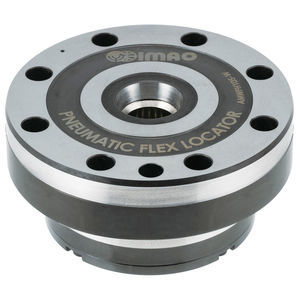

• For use with AMWF-L series pneumatic clamping locator pins (AMWF-L-S family).
• Receivers designed for AMWF-L locators.

Variants (table)
Column headings: ID | SKU | Thread | P.C.D. | D | D1 (g6) | D2 | D4 (E7) | D5 | W | H | H1 | H2 | H3 | V | Use Locating Pin
131970 | AMWF18-BU | M4x0.70 | 28 | 36 | 20 | 19.6 | 12.1 | 4.5 | 8 | 8 | 10.5 | 7.5 | 3.5 | 45 | AMWF18L-4S, AMWF18L-4S-G
131973 | AMWF26-BU | M5x0.80 | 34 | 44 | 25 | 24.6 | 16.1 | 5.5 | 9.5 | 9.5 | 11 | 7 | 4 | 45 | AMWF26L-4S, AMWF26L-4S-G

Material & Finish
Made from 1045 steel with an electroless nickel plated finish.

Media

• Specifications (PDF)
• Product Video (MP4)
• Product Catalog (PDF)
• How to Use (PDF)
• How to Install (PDF)

Specifications / Technical data

• Model: AMWF-BU
• Product type: Receiver (steel receiver for AMWF-L locators)
• Compatible with: AMWF-L-S ball locking pneumatic Flex locator pins
• Material: 1045 steel
• Finish: Electroless nickel plating
• Available SKUs/threads: AMWF18-BU (M4x0.70), AMWF26-BU (M5x0.80)
• Key dimensions (examples): AMWF18-BU D=36 mm, H=8 mm, V=45 mm; AMWF26-BU D=44 mm, H=9.5 mm, V=45 mm
