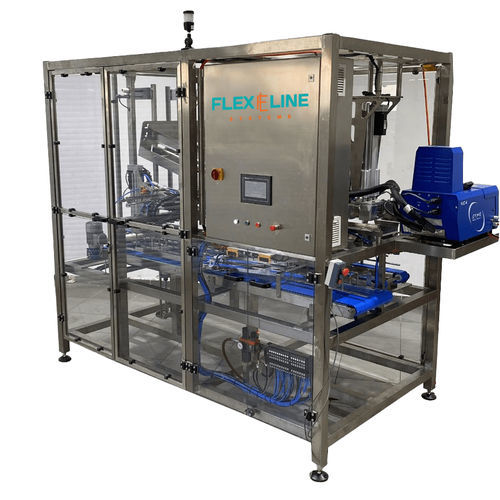

Automatic cartoner-tray forming machine PEK 04

horizontalfor the food industrycompact

Tray carton forming & packing machine Compact Packaging Machine Designed as an Automated System with Multiple Sequential Modules Main modules of the machine: Tray forming station with glue application • Trays are formed from flat blanks. • A glue application unit precisely applies adhesive to designated areas of the blank. • A pressing unit folds and secures the tray until the glue fully sets. Packaging distribution module • A conveyor feeds the finished packages in a single line. • A sorting system divides the packages into groups of six using a flow divider. Handling manipulator for stacking • A robotic manipulator with a vacuum or mechanical gripper. • Places packages into the tray in two layers (6 packages per layer). • Adjustable parameters allow operation with different package formats. Stacking station for finished trays • A conveyor moves filled trays to the stacking module. • An automatic lifting/lowering system stacks the trays to a specified height. • A built-in stabilization unit ensures stack stability. Design features: • Compactness: Optimal module layout minimizes the machine’s footprint. • Automation: Programmable manipulators and control sensors minimize manual labor. • Versatility: Adjustable settings enable compatibility with various tray and package sizes. Materials and components: • Frame: Stainless steel (hygienic and wear-resistant). • High-precision servomotors: For the manipulator and transport units. • Industrial controllers (PLC): For machine control.
