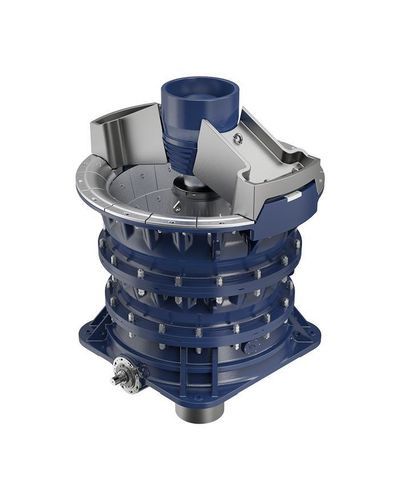

Gyratory crusher TSUVstationaryprimaryhigh-capacity
Add to favorites
Compare this product
Characteristics
- Technology
- gyratory
- Mobility
- stationary
- Other characteristics
- high-capacity, primary, for mineral material, stone, electric
- Capacity
Max.: 15,000 kg/h
(33,069.3 lb/h)Min.: 0 kg/h
(0 lb/h)- Motor power
Max.: 1,500 kW
(2,039.43 hp)Min.: 0 kW
(0 hp)- Opening height
Max.: 72 cm
(28.3 in)Min.: 60 cm
(23.6 in)- Opening lenght
Max.: 130 cm
(51.2 in)Min.: 113 cm
(44.5 in)- Weight
180,000 kg, 215,000 kg, 270,000 kg, 332,000 kg, 495,000 kg
(396,832.07 lb, 473,993.86 lb, 595,248.11 lb, 731,934.71 lb, 1,091,288.2 lb)
Description
Overview
FLS gyratory crushers are engineered for primary and secondary crushing in hard-rock mining and heavy aggregate applications. Designed for top-service access and modular maintenance, the range delivers configurable throughput from multiple thousands of tph up to 15 000 tph depending on model and configuration.
Key features
Models and variants described
Selected comparison (examples from page)
Digital & measurement
Technical specifications
FLS gyratory crushers are engineered for primary and secondary crushing in hard-rock mining and heavy aggregate applications. Designed for top-service access and modular maintenance, the range delivers configurable throughput from multiple thousands of tph up to 15 000 tph depending on model and configuration.
Key features
- Top Service (TS) design: eccentric assembly, bushings and hydraulic piston are removed from above for safer and faster maintenance.
- TSUV (Top Service Ultra-Velocity): increased speed and power handling with integrated Smart controls for wear compensation and automatic mantle adjustment.
- High capacity variants: models covering multi-thousand tph ranges up to 15 000 tph depending on feed opening and configuration.
- Improved power handling: latest designs support up to 1500 kW for higher throughput with optimised speed to control wear.
- Durability and lifecycle: heavy cast-steel shell sections, forged main shaft and refurbishable components for extended service life and circular lifecycle management.
- Safer maintenance and reduced downtime versus bottom-service designs due to top access and modular components.
- Digital measurement options (CrusherLensIQ) for accurate OSS measurement and data-driven optimisation.
Models and variants described
- TSUV Gyratory Crusher (Top Service Ultra-Velocity) — latest generation with integrated Smart controls, capacities up to 15 000 tph.
- TS Gyratory Crusher (Top Service) — Top Service line prioritising safety, maintenance access and reliability.
- NT Gyratory Crusher — evolved from Fuller TC line with heavy cast-steel shell sections, forged main shaft and robust gearing.
- Gyratory Crusher Pro — high-performance hard-rock variant for demanding conditions with capacities up to ~14 000 tph.
Selected comparison (examples from page)
- Feed opening examples: 60 x 113 in. — 63 x 118 in.
- Capacity (examples): 6 000 tph — 10 000 tph
- Power (examples): 1000 kW — 1200 kW; maximum power handling on latest designs up to 1500 kW.
- Strip down time (examples): 17 hours — 5 hours (model and design dependent).
- Reduction ratio examples: 4.0:1 — 4.5:1.
Digital & measurement
- CrusherLensIQ: camera-based OSS (open side setting) measurement system for safer, reliable, data-driven OSS measurement and optimisation.
- Integrated Smart controls (TSUV): wear compensation and automatic mantle adjustment to maintain consistent crushing performance.
Technical specifications
- Product family: Gyratory crushers (TSUV, TS, NT, Gyratory Crusher Pro).
- Typical capacity range: multiple thousands of tph up to 15 000 tph (model dependent).
- Feed opening examples: 60 x 113 in.; 63 x 118 in.
- Motor power examples: 1000 kW; 1200 kW; up to 1500 kW on highest-capacity variants.
- Power-to-weight ratio (example): ~1:2.3 (model dependent).
- Reduction ratio (example): 4.0:1 to 4.5:1 (model dependent).
- Maintenance design: Top-service access (TS/TSUV) — eccentric assembly serviced from above, modularised components to reduce downtime.
- Smart features: wear compensation, automatic mantle adjustment, digital OSS measurement (CrusherLensIQ).
- Durability: heavy cast-steel shell sections, forged main shaft, robust gearing and long-life bronze components on select models.
