Chemical pump
oilfuelelectric

chemical pump
chemical pump
Add to favorites
Compare this product

Characteristics

Media
for chemicals, oil, fuel
Operation
electric
Priming
semi-submersible
Technology
centrifugal
Domain
industrial, for the chemical industry, for the pharmaceutical industry, agriculture, for the cosmetics industry
Other characteristics
with mechanical seals, portable, explosion-proof, ATEX, stainless steel
Applications
drum
Fluid specification
flammable products
Flow

240 l/min (63.4013 us gal/min)

Power

460 W (0.63 hp)

Description

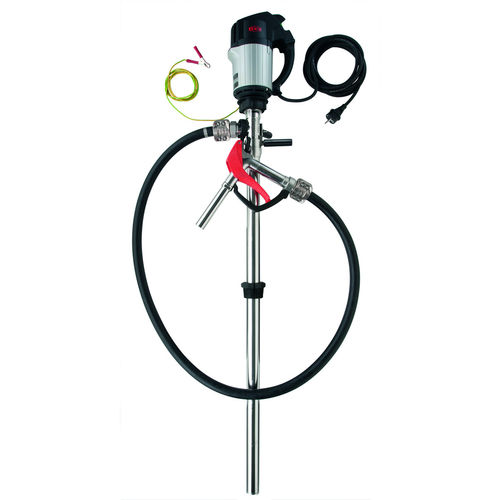

Pre-assembled pump kit to pump different media out of 200 l drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430, outer tube in stainless steel, hose, hand nozzle and compression gland. Driven either by commutator motor F 460 or compressed-air motor F 416. Technical data: ► Flow rate: max. 50 l/min ► Delivery head: max. 13 mwc ► Viscosity: min. 1 mPas - max. 800 mPas ► Outer tube diameter: max. 41 mm ► Immersion length: 1000, 1200 ► Materials outer tube: Stainless steel ► Media / Fluids: Petroleum products, Highly flammable media, Solvents, Fuels ► Seal: with mechanical seal ► Container: 200 l drums, 1000 l IBC Product attributes ► Pump with mechanical seal ► Pump can be taken apart without tools into two parts ► Steel core in the inner tube prevents longitudinal changes at high or low temperatures Benefits ► Easy disassembly ► Universally and flexibyl applicable ► Easy to clean as no medium can get into the inner tube ► No carrying-over of the medium - one pump can be used for different media ► Also for adhesive media ► Also for liquids that crystallize or harden
