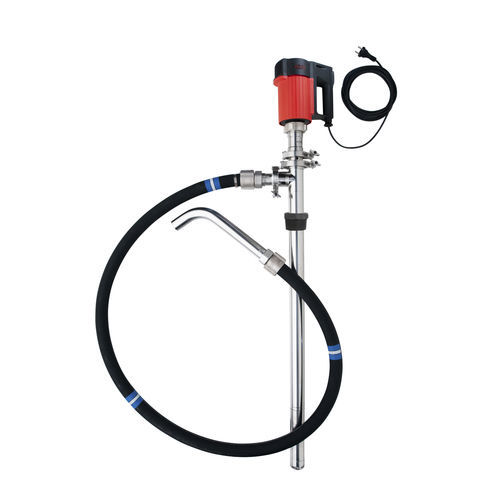

Drum pump VISCOPOWER F 570

for chemicalsfor lubricantselectric

Pre-assembled progressive cavity pump kit with progressive cavity pump VISCOPOWER F 570 and planetary gear for industrial applications to pump thin to medium viscous media up to 30.000 mPas out of 200-l drums and IBCs. The positive displacement pump works smoothly at a constant pressure and ensures a gentle, pulsation-free pumping. Comprising progressive cavity pump VISCOPOWER F 570  in 1000 or 1200 mm, Commutator motor F 457, Chemical and Food hose , Discharge spout, Pressure connector adaptor and hinged clamp with seal and compression gland. Technical data: - Flow rate: max. 30 l/min - Delivery head: max. 60 mwc - Viscosity: min. 1 mPas - max. 30000 mPas - Outer tube diameter: max. 53 mm - Immersion length: 1000, 1200 - Materials outer tube: Stainless steel - Media / Fluids: Viscous media - Container: 200 l drums, 1000 l IBC Product attributes - Positive displacement pump - Ideally suited to a wide range of low and medium viscosity industrial applications - Perfect for viscous, free-flowing media that is sensitive to shearing - Intuitive and quick to dismantle and clean - Smooth pumping and with very little turbulences - Low pulsation in relation to the flow - Pump / shaft / worm can be dismantled Benefits - Wide range of viscosity can be covered - Optimal for viscous self-flowing media - Also suitable for shear-sensitive media - Transfer at constant pressure - Can be adjusted individually on the media's characteristics - Pump can be dismantled - Efficient use of medium - High efficiency
