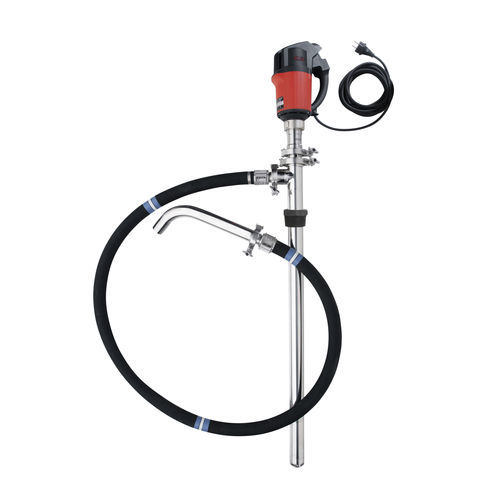

Drum pump VISCOPOWER F 570

for food productselectricprogressive cavity

Pre-assembled progressive cavity pump kit with progressive cavity  pump VISCOPOWER F 570 and planetary gear for food and pharma to pump thin to medium viscous media up to 25.000 mPas out of 200-l drums and IBCs. The pump is especially designed to meet the specific requirements of the food, cosmetic and pharmaceutical industries and works with little turbulences, at constant pressure and ensures a smooth, pulsation-free pumping. Comprising progresssive cavity pump VISCOPOWER F 570 in 1000 or 1200 mm, Commutator motor F 458-1, Discharge spout, hinged clamp with seal and compression gland. Technical details - Viscosity: min. 1 mPas - max. 25000 mPas - Outer tube diameter: max. 53 mm - Immersion length: 1000, 1200 - Materials outer tube: Stainless steel - Container: 1000 l IBC, 200 l drums Attributes - Positive displacement pump - Particularly suited to food applications - Perfect for viscous, free-flowing media that is sensitive to shearing - Smooth pumping of the liquid with very little turbulences - Intuitive and quick to dismantle and clean - Low pulsation in relation to the flow - Pump/shaft/worm can be dismantled - Lightweight and mobile use Benefits - Optimal for viscous self-flowing media - Also suitable for shear-sensitive media - Transfer at constant pressure - Can be adjusted individually on the media's characteristics - Pump can be dismantled - Appropriate for food contact acc. to EC 1935/2004 and FDA CFR 21
