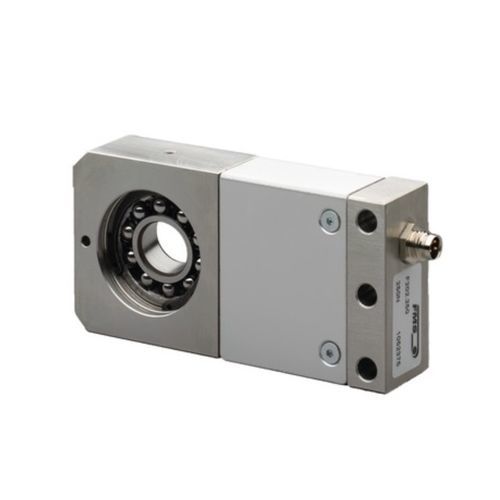

Tension force measuring bearing F series
digitalhigh-precisionstainless steel

Tension force measuring bearing - F series - FMS Force Measuring Systems AG - digital / high-precision / stainless steel
Tension force measuring bearing - F series - FMS Force Measuring Systems AG - digital / high-precision / stainless steel
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
tension
Output signal
digital
Other characteristics
high-precision, stainless steel
Rated force

50 N, 125 N, 250 N, 500 N

Description

•Extremely flat design •Measuring range 30:1, accuracy class 0.5% •Nominal forces from 50 to 500 N (11 to 112 lbf.) •Measuring body from stainless steel The force measuring bearings of the F-Series feature an extremely slim design. They are designed for the measurement of tension on continuous material processing lines where live shaft idler rolls are utilized. The installation on the machine is simply realized with two shoulder bolts.
