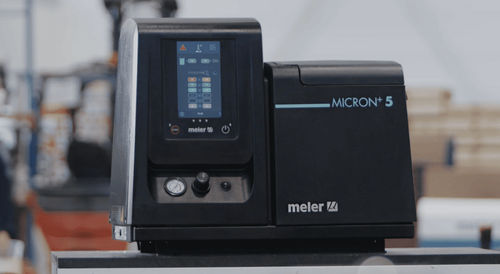

Hot melt glue melter Micron+

Overview
Micron+ is a hot-melt melter engineered for Industry 4.0 production environments. It combines sequential heating, reduced energy consumption and extended connectivity to support integration, remote monitoring and simplified maintenance.

Energy efficiency and maintenance
Reduces electrical consumption by up to 60% compared with competing units. Sequential heating provides homogeneous temperature distribution and adhesive protection, minimising waste and maintenance interventions.

Connectivity and remote control
Multiple connectivity options and supported communication protocols enable remote control and continuous data monitoring from any device. The system facilitates remote diagnostics and maintenance operations.

Flexibility and usability
7" touchscreen HMI with an optional removable display for remote operation. Configurable outputs and cool-touch housings simplify loading and cleaning while improving operator safety and accessibility.

Integration
Designed for line integration: Micron+ can be interlinked with the main machine to allow centralized control from a single interface.

Optional ICONS interface
Available ICONS visual menu (icon-based) to simplify navigation and reduce the learning curve in international production environments.

Key features

• Versatility
• Usability
• Melting capacity
• Adhesive treatment
• Energy efficiency
• Accessibility

Highlights / Feature items

• WIFI connection
• Wide variety of communication protocols
• Advanced technology with straightforward operation
• Ease of use and installation
• Improved productivity through versatility
• Energy efficiency

Technical characteristics / specifications

• Melting capacity: from 9.0 to 30 kg/h
• Pumping capacity: 29.3 kg/h (7 cc pump) ; 66 kg/h (19 cc pump)
• Number of outlets: 2, 4 or 6 electrical outlets – 6 hydraulic outlets
• Temperature range: 0 to 200 °C (32 to 392 °F)
• Temperature control: Pt100, Ni120 or NTC-R
• Maximum working pressure: 81.6 bar (1,183 psi)
• Electrical functionalities: Inputs: equipment On-Off, Standby, activity control (auto Standby/OFF), pumping On-Off, communications On-Off, inhibition of electrical outputs. Outputs: adhesive low level, pumping activated, temperature OK, error, level error (tower light).
• Electrical requirements: 1N ~ 230 V 50/60 Hz + PE or 3N ~ 400 V 50/60 Hz + PE
• Options: Temperature range up to 230 °C (32 to 446 °F); Automatic pressure control VP-200; Transformer base for 400 VAC without neutral (not available in version 35); Air input filter; Low-level float sensor (not available at 230 °C) or capacitive sensor with or without tower light; Automatic adhesive loader.
