- Production Machines
- Plastics Processing
- Extrusion blow molding machine
- Fong Kee Iron Works Co., Ltd.

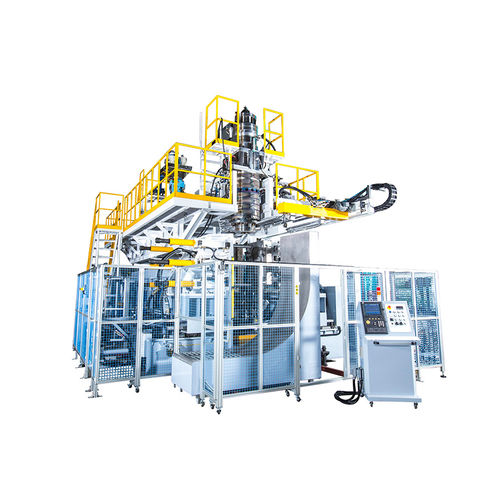

Extrusion blow molding machine ABI-150GLK1210for large containersfor cansautomatic
Add to favorites
Compare this product
Characteristics
- Type
- extrusion
- Finished product
- for large containers, for cans
- Other characteristics
- automatic, multilayer
- Hollow part volume
40 l
(10.6 gal)- Clamping force
10,600 kN
Description
Accumulator head - 40 liter float
Mono Layer and Multi-layer Accumulator Head Type Blow Moulding Machine.
For producing 20 liter to 1000 liter volume, all kinds of jerry can, containers, float dock, air duct and industrial low moulding products.
ResinHDPE
Products40 liter float, net weight : 3kg/ Gross weight: 8.5kg
875mm (L) x 410mm (W) x 160mm(T)
Driving motor300hp AC motor with inverter control
ExtruderScrew dia.150mm, L/D=30:1
Output600 kg/hr (based on MFI: 5-10)
Head designAccumulator type, 15 liter (shot weight: 10.5kgs)
Die lip sizeφ470mm diameter (max.)
Clamping plate
( H x W )1200mm x 1070mm
Clamping force106 tons (10600kN)
Clamping distance400 - 1400 mm
Mould thickness420 - 750 mm
Tonnage pressureMax. 180 kg/C㎡ (Adjustable)
Push-out unitFully automatic
