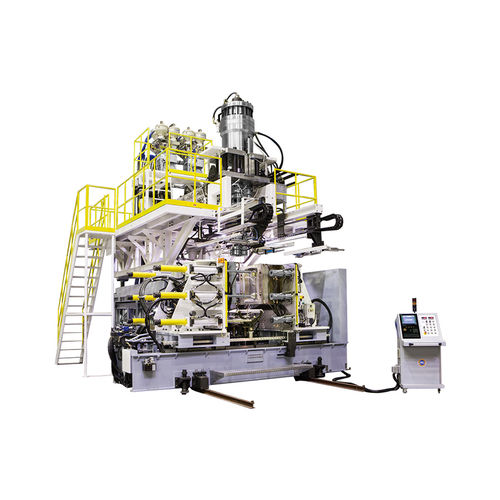

Extrusion blow molding machine FK/ABI-100G/100GLK1412
for drumsfully-automaticwith accumulator head

extrusion blow molding machine
extrusion blow molding machine
Add to favorites
Compare this product


Characteristics

Type
extrusion
Finished product
for drums
Other characteristics
fully-automatic, with accumulator head
Clamping force

700 kN

Description

Double Layer Accumulator Head ResinHDPE (Blow moulding grade) ProductsWheel plate, Barrier , Drum Driving motor125HP AC motor with vector inverter ExtruderScrew dia.100 mm, L/D=30:1 x 2 sets OutputOutput: 450kg/hr (max. for MARLEX 50100) Head designDouble layer accumulator type, 20 liter, shot weight 14 kg Die lip sizeφ450mm diameter (max.) Clamping plate ( H x W )1400mm x 1200mm ( H X W ) Clamping force70tons (700KN) Clamping distance400 - 1600 mm Mould thickness650 – 1000mm Tonnage pressureMax. 180 kg/C㎡ (Adjustable) Push-out unitFully automatic
