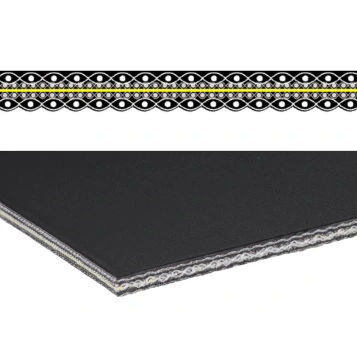

MDF conveyor belt AE 60/3 U0/U4H MT

polyurethanepolyurethanearamid

The new Transilon AE 60/3 U0/U4H MT black belt was developed for the wood industry and is used as a prepress belt for processes with high impulse loads. The 909241 stands apart for its exceptionally elastic behavior. With its triple-ply fabric design, which includes a high-tech fabric in the middle, it has the ideal elasticity for this application. Applications • Prepress belt for MDF and particle board lines • Heavy loads conveying including metals • Brick, tiles or stone conveying • General conveying Properties/Advantages • Top face material hardness Shore A 92 • High modulus special fabric with aramid straight warp • Exceptionally strong and wear-resistant fabric design • Exceptionally laterally stiff • Low noise Basic data • Top face : Polyurethane, hard, matte • Underside : Polyurethane impregnation • Article no. : 909241 • dmin [mm] : 125 • k1% relaxed [N/mm width] : 45 • Weight [kg/m²] : 4.4 • Permitted operating temperature [°C] : -30 to +100
