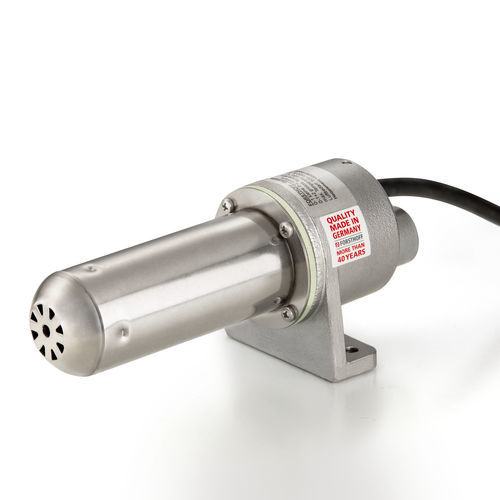

Air heater 3000 & 5000
electric

air heater
air heater
air heater
Add to favorites
Compare this product


Characteristics

Treated product
air
Other characteristics
electric
Power

1,800 W, 2,400 W, 3,000 W, 5,000 W, 7,500 W (2 hp)

Temperature

Min.: 20 °C (68 °F)

Max.: 650 °C (1,202 °F)

Pressure

Max.: 1 bar (14.5 psi)

Description

The uncomplicated and sturdy hot air generator for many applications. The air heaters model 3000 and model 5000 can be put to numerous different uses, for example on conveyor belts and in machines. The hot air they generate is used for activating, shrinking, drying and shaping.The air heaters are switchable in 3 stages and can be equipped with different heat outputs with 230 V or 400 V RC offering up to maximum 650 °C.Models 3000 and 5000 require an external air supply by means of fan, side channel blower or compressor. The required air flow amounts to 500 to 1500 litre/minute, depending on the nozzle.It is possible to concentrate and change the air flow by means of different slip-on nozzles so that individual solutions can be created. Air heaters Model 3000 with 230 V ~ Voltage 700 + 1200 W, 800 + 800 W, 800 + 1400 W, 1200 + 1800 W 3 x 600 W, 3 x 800 W, 3 x 1000 W, 3 x 1200 W Weight 1.097 kg Dimensions Length 220 mm, width 80 mm, height 90 mm Model 3000 with 400 V 3 ~ Voltage 3 x 600 W, 3 x 800 W, 3 x 1000 W, 3 x 1200 W Weight 1.097 kg Dimensions Length 220 mm, width 80 mm, height 90 mm Model 5000 with 230 V ~ Voltage 2200 W + 2800 W 3 x 1000 W, 3 x 1700 W, 3 x 2000 W, 3 x 2500 W Weight 1.097 kg Dimensions Length 300 mm, width 80 mm, height 90 mm Model 5000 with 400 V 3 ~ Voltage 3 x 1000 W, 3 x 1700 W , 3 x 2000 W, 3 x 2500 W Weight 1.097 kg Dimensions Length 300 mm, width 80 mm, height 90 mm
