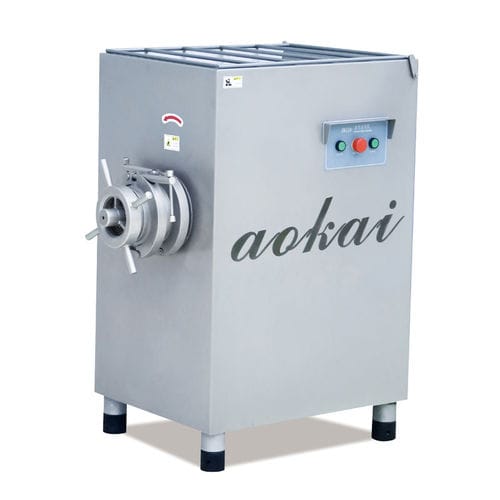

Meat meat grinder AKJ1 series
fresh meatfrozen meatfloor-standing

Meat meat grinder - AKJ1 series - Foshan Aokai machinery Technology Co.,Ltd - fresh meat / frozen meat / floor-standing
Meat meat grinder - AKJ1 series - Foshan Aokai machinery Technology Co.,Ltd - fresh meat / frozen meat / floor-standing
Meat meat grinder - AKJ1 series - Foshan Aokai machinery Technology Co.,Ltd - fresh meat / frozen meat / floor-standing - image - 2
Meat meat grinder - AKJ1 series - Foshan Aokai machinery Technology Co.,Ltd - fresh meat / frozen meat / floor-standing - image - 3
Meat meat grinder - AKJ1 series - Foshan Aokai machinery Technology Co.,Ltd - fresh meat / frozen meat / floor-standing - image - 4
Meat meat grinder - AKJ1 series - Foshan Aokai machinery Technology Co.,Ltd - fresh meat / frozen meat / floor-standing - image - 5
Add to favorites
Compare this product

Characteristics

Minced product
meat
Type
fresh meat, frozen meat
Installation
floor-standing
Other characteristics
automatic, stainless steel
Output

Min.: 800 kg/h
(1,763.7 lb/h)

Max.: 2,000 kg/h
(4,409.25 lb/h)

Motor power

7.5 kW, 11 kW
(10.2 hp, 14.96 hp)

Weight

280 kg, 600 kg
(617.3 lb, 1,322.8 lb)

Description

Meat grinder machine as a common machine for meat processing, which can directly mince the frozen meat above -5℃.By changing the hole plate, various specifications of particles can be processed to meet different process requirements. Product Features: 1. The cutting blade, cutting blade sleeve and the support ring of our meat grinder are all made of high-precision casting technology, which is formed by one-time casting, and has high structural strength and is not easy to be damaged. 2. The reamer is made of 9CrSi material, which has been forged and has good quenching performance and long wear-resistant service life. 3. High-power motor, sufficient power and large thrust, can directly mince frozen meat. 4. The gear box is precisely machined, and the gears adopt helical tooth structure. After grinding the teeth, the fit is smooth, the noise is low, and the operation is stable. 5. The gear box fixing bolts are installed on the front, which is convenient for disassembly and maintenance. 6. The reducer can increase the torque, increase the thrust of the screw, shorten the processing time of the meat, and the temperature of the meat is small. Our equipments can make all kinds of sausages: Dried sausage/Fried sausage/Homemade sausage/French sausage/Flavor sausage/Salami/Ham/Hot dog/Liver Sausage/ Rice Sausage/Cuttlefish Sausage/Grilled sausage and so on. Product Description Frozen meat grinder is a common equipment for meat processing, which can directly mince unfrozen frozen meat; By changing the hole plate, various specifications of particles can be processed to meet different process requirements;
