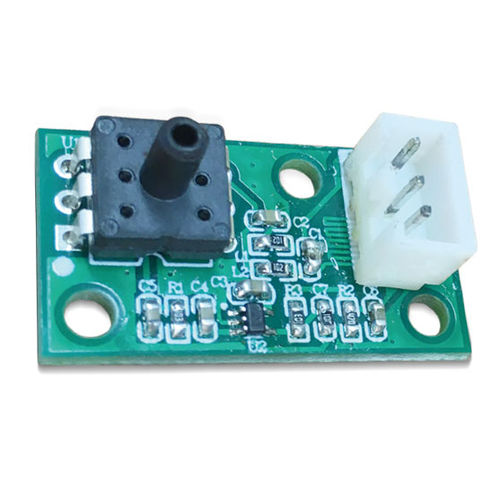

Relative pressure sensor CDM-NSP-010

piezoresistivedigitalfor gas

CDM-NSP-010It is a calibrated gauge pressure sensor product developed for the home appliance and healthcare equipment market.The signal conditioning chip calibrates and compensates the temperature and pressure of the MEMS piezoresistive core output to ensure performance and reliability. Integrate the package for ease of use FEATURE： 1.Depending on the operating temperature range 0°CC to 70°C 2.High comprehensive accuracy in the full temperature range; +2% s 3.Customizable range 4-100kPa 4.Analog voltage 1 digital output I frequency output optional 5.High stability, 100% calibration, temperature compensation 6.Packed in a 50P package for easy placement and easy sealing 7.Kawagawa chip package internal waterproof and moisture-proof treatment APPLICATION： 1.Liquid level detection for washing machines, dishwashers, etc. 2.Air cushion bed, massage chair and other health care applications 3.Intelligent blood pressure monitor, oxygen generator, etc. 4.Industrial control, IoT pressure detection
