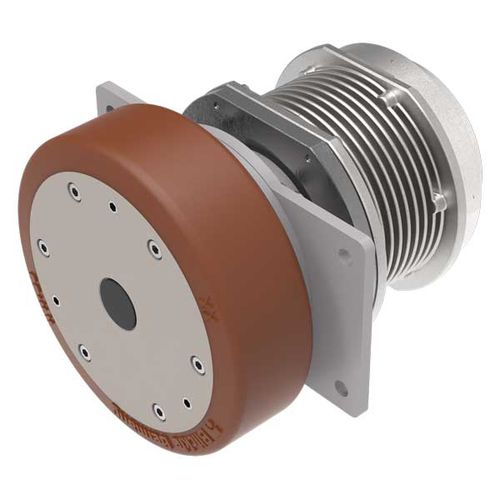

AGV motor wheel
BLDCfor industrial applicationswith serial interface

AGV motor wheel
AGV motor wheel
AGV motor wheel
AGV motor wheel
AGV motor wheel
Add to favorites
Compare this product


Characteristics

Type
BLDC
Applications
for AGV, for industrial applications
Other characteristics
with serial interface
Load

250 kg, 500 kg (551.2 lb)

Diameter

160 mm (6.3 in)

Weight

9 kg, 10 kg (20 lb)

Operating temperature

Max.: 40 °C (104 °F)

Min.: 0 °C (32 °F)

Torque

Max.: 63 Nm (46 ft.lb)

Min.: 18 Nm (13 ft.lb)

Power

Max.: 1,300 W (1.77 hp)

360 W, 660 W (0.49 hp)

Min.: 0 W (0 hp)

Speed range

Max.: 8 km/h (4.97 mph)

Min.: 0 km/h (0 mph)

Description

All functional elements in one compact system Framo Morat has developed a highly integrated wheel hub drive that combines all functional elements, such as the wheel, a high-precision planetary gear, a powerful electric motor and a brake and electronics, into one all-inclusive solution. This modular and scalable system boasts high performance in a compact design and lets users make adaptations to the load capacity, torque, interfaces, sensor system and control profiles. A high level of vertical integration in the component production, motor winding and assembly helps achieve short delivery times. When providing service and consultation, Framo Morat draws upon over 100 years of experience in gear technology and drive engineering and many years of industry expertise. Wheel hub drive – Technical features Maximum power density High radial loads and constantly high acceleration and speed Long service life Drive system designed for efficiency with a long-lasting PUR wheel Low level of maintenance Components can be replaced individually thanks to the modular design Intelligent drive system Plug & Play function and a central parameter check using an optional sensor system High level of integration All functional elements housed in a compact space with minimal weight Comprehensive communication Comprehensive drive control system as an e-axle thanks to standard interfaces (e.g. RS485) Wheel hub drive – Performance data Power continuous operation: 360 W Power intermittent operation: 660 W Max. power: 1300 W Nominal voltage: 48 VDC Nominal current: 20 A Max. power consumption: 35 A
