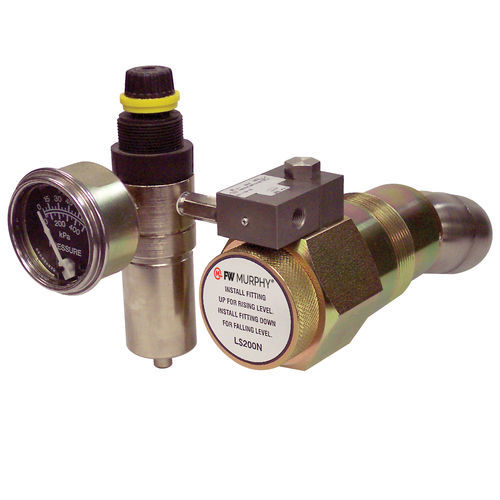

Float level switch LS200 series

for liquidsfor harsh environmentsstainless steel

Designed for harsh gas compressor scrubber applications 304 stainless steel float operates in 0.55 specific gravity and heavier fluids LS200 series rated for 2000 psi (13.8 MPa) [138 bar] working pressure Electric and pneumatic models available More robust design All models screw directly into the scrubber or can be mounted via external float chamber Nickel plated body to provide enhanced corrosion protection Listed for cCSAus Class I, Div 1, Grps. C & D locations Canadian Registration Number 0F01476.2 Stainless steel models are available for corrosive atmospheres. Trip on rising liquid level only Designed for harsh gas compressor scrubber applications, the LS200 Series Liquid Level Switches feature a robust design that trips on rising liquid level only. With both electric and pneumatic models available, the instruments screw directly into the vessel or can be mounted via an external float chamber. The nickel-plated body provides enhanced corrosion protection while the 304 stainless steel float operates in 0.55 specific gravity and heavier fluids. Additional features include: Rated for 2000 psi (13.8 MPa) [138 bar] working pressure Listed for Class I, Div. 1, Grp. C & D locations Canadian registered Stainless steel models available for corrosive atmospheres The LS200 Series replaces the FW Murphy Series L1200 Liquid Level Switches. The MSLS (Scrubber Level System) replaces the LS200 high-level shut-down switch with the MLS-020 magnetic level switch.
