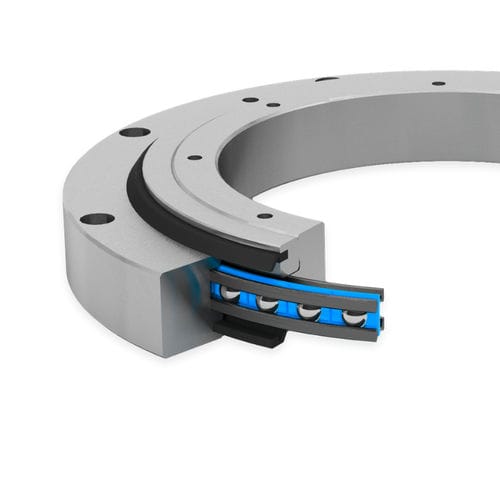

Slewing ring without teeth LVA series
ballsingle-rowfour-point contact

slewing ring without teeth
slewing ring without teeth
slewing ring without teeth
slewing ring without teeth
Add to favorites
Compare this product


Characteristics

Teeth
without teeth
Rolling element
ball
Geometry
single-row, four-point contact
Inner diameter

Max.: 1,670 mm
(65.7 in)

Min.: 50 mm
(2 in)

Outer diameter

Max.: 1,930 mm
(75.984 in)

Min.: 150 mm
(5.906 in)

Width

Max.: 90 mm
(3.543 in)

Min.: 34 mm
(1.339 in)

Description

Characteristics Bearing type • Bearing assembly in steel design Charakteristics • Ready to install, wide selection range • Preloaded free from clearance • Selected diamters available ex works Diameter range • from 100 - 1800 mm In detail Bearing type LVA is a bearing assembly with housing rings made of steel and integrated bearing element. Franke bearing assemblies in type LVA are designed for medum rotatinal speeds and accuracies. They are available on short notice, in some cases even from the warehouse. Charakteristics Franke bearing assemblies type LVA are ready-to-use, complete bearings with integrated Wire Race Bearings. Designed as 4-point bearings, they absorb equal load from all sides and are insensitive to impact and vibration. The bearing assemblies are sealed on both sides and set free from clearance and are preloaded. On request you can receive the bearing assemblies ex works with your specified preload values.
