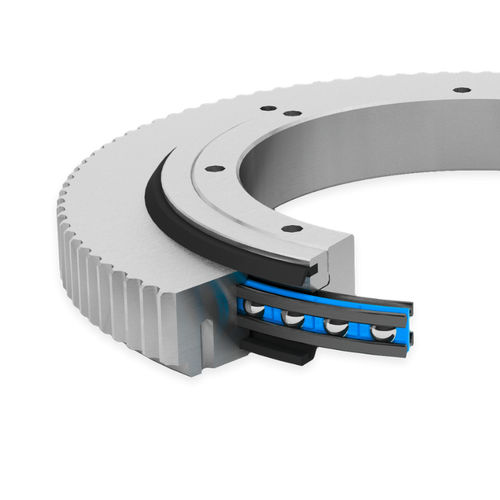

External-toothed slewing ring LVE series
ballsingle-rowfour-point contact

external-toothed slewing ring
external-toothed slewing ring
external-toothed slewing ring
external-toothed slewing ring
Add to favorites
Compare this product


Characteristics

Teeth
external-toothed
Rolling element
ball
Geometry
single-row, four-point contact
Inner diameter

Max.: 1,670 mm
(65.7 in)

Min.: 50 mm
(2 in)

Outer diameter

Max.: 1,930 mm
(75.984 in)

Min.: 150 mm
(5.906 in)

Width

Max.: 90 mm
(3.543 in)

Min.: 34 mm
(1.339 in)

Description

Characteristics Bearing type • Bearing assembly in aluminum design / toothed belt gear Characteristics • Ready to install, large selection range • Perloaded freee from clearance • Available on short notice Product range • Infiniteley variable from 100 - 1800 mm In detail Bearing type LVE is a bearing assembly with toothed belt gear type and housing rings made of aluminium and integrated bearing element. Franke bearing assemblies in type LVE are designed for medium rotational speeds and accuracies. They are available on short notice, in some cases even from the warehouse (see table). Characteristics Franke bearing assemblies type LVE are ready-to-use, complete bearings with integrated Wire Race Bearings. Designed as 4-point bearings, they absorb equal load from all sides and are insensitive to impact and vibration. The bearing assemblies are sealed on both sides and set free from clearance and are preloaded. On request you can receive the bearing assemblies ex works with your specified preload values.
