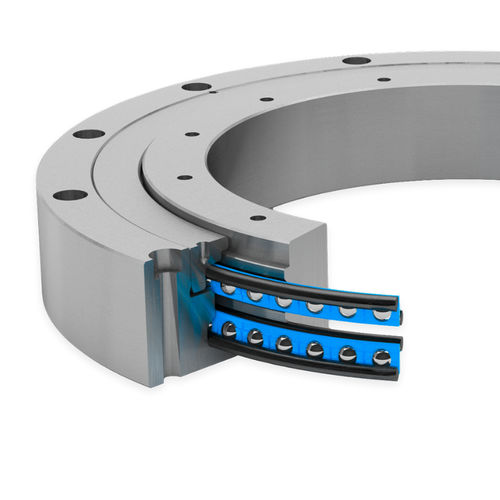

Slewing ring without teeth LVC series
balldouble-rowangular-contact

slewing ring without teeth
slewing ring without teeth
slewing ring without teeth
slewing ring without teeth
Add to favorites
Compare this product


Characteristics

Teeth
without teeth
Rolling element
ball
Geometry
double-row, angular-contact
Inner diameter

Max.: 1,670 mm
(65.7 in)

Min.: 50 mm
(2 in)

Outer diameter

Max.: 1,930 mm
(75.984 in)

Min.: 150 mm
(5.906 in)

Width

Max.: 84 mm
(3.307 in)

Min.: 34 mm
(1.339 in)

Description

Characteristics Bearing type • Bearing assembly in steel design • Integrated double-row angular ball bearing Characteristics • Ready to install, wide selection range • Preloaded free from clearance • For high speed and acceleration Diameter range • Infinitely variable from 100 - 1800 mm In detail Bearing type LVC is a bearing assembly designed as double-row angular contact ball bearing made of steel with two integrated bearing elements. Franke bearing assemblies in type LVC are suitable for the highest circumferential speeds. Convincing aspects include their high dynamism and low rotational resistance. Characteristics Franke bearing assemblies type LVC are ready-to-use, complete bearings. The double-row angular contact ball bearing in 4-point adjustment is preloaded free of clearance. It is insensitive to impact and vibration. The low rotational resistance and the minimal breakaway torque reduce the necessary drive power. Bearing assemblies type LVC operate practically without maintenance and achieve a high service life due to the low friction values.
