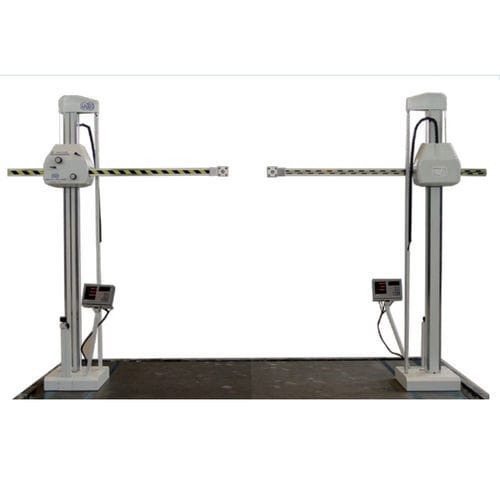

Coordinate measuring machine with horizontal arm MINITRICOORD
multi-sensor

coordinate measuring machine with horizontal arm
coordinate measuring machine with horizontal arm
coordinate measuring machine with horizontal arm
coordinate measuring machine with horizontal arm
coordinate measuring machine with horizontal arm
coordinate measuring machine with horizontal arm
coordinate measuring machine with horizontal arm
Add to favorites
Compare this product


Characteristics

Structure
with horizontal arm
Probe type
multi-sensor
X travel

Max.: 1,500 mm (59 in)

Min.: 400 mm (16 in)

Y travel

Max.: 2,000 mm (79 in)

Min.: 500 mm (20 in)

Z travel

Max.: 4,000 mm (157 in)

Min.: 500 mm (20 in)

Description

Three-dimensional measuring and tracing horizontal axis machine. Open structure on all sides. Suitable for high production levels. This kind of machine is employed in several different dimensional control applications, since its many models can guarantee customized solutions for any specific requirement. Production volumes range from low to medium and high. The device is the culmination of fifty years of metrology experience, thirty of which spent building machines of a similar kind. Tricoord and Minitricoord technical specifications. Vertical column: section in hot extruded- steel C40 – n. 8 sliding tracks – (two on each side), hard-chrome plated, hardness HRc60/62, high precision ground, arranging on the head a pulley system (mounted on bearings) for counter-balancing – internal adjustable counterweight for the slider balancing – limit switches. Horizontal arm: section in hot extruded- steel C40 – n. 8 sliding tracks – (two on each side), hard-chrome plated, hardness HRc60/62, high precision ground – with working head locks – limit switches – slide guides machining carried-out as to compensate the flexure produced by their own weight (variable according to the movement). Slider: made in light alloy – with ribs suitably arranged as to avoid as much as possible the flexures – the casual fall of the slider following a possible breakage of the counterweight cable is protected by an instantaneously- operating safety system.
