Bridge coordinate measuring machine Gemini series
for large partsfor small partsfor crankshafts

bridge coordinate measuring machine
bridge coordinate measuring machine
bridge coordinate measuring machine
bridge coordinate measuring machine
bridge coordinate measuring machine
Add to favorites
Compare this product


Characteristics

Structure
bridge
Applications
for large parts, for small parts, for crankshafts, for artificial joints, for the aeronautical industry
Probe type
multi-sensor, optical, contact
Other characteristics
high-precision, automated, on air bearings
X travel

1,000 mm, 1,200 mm, 1,500 mm, 1,800 mm, 2,000 mm (39 in)

Y travel

800 mm, 1,000 mm, 1,200 mm, 1,500 mm (31 in)

Z travel

600 mm, 800 mm, 1,000 mm (24 in)

Description

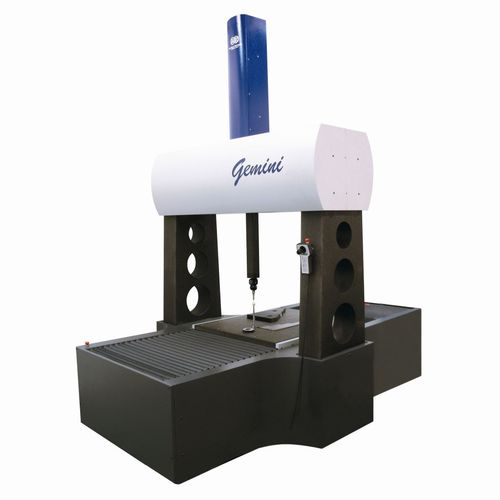

This machine is the flagship product of F.lli Rotondi. Gemini is a measuring machine for automatic measuring of medium-sized pieces and for digitizing of patterns and models. Framework with fixed bridge and mobile table • Machine base/guideway, worktable, supporting columns on Y axis, slide ways made of diabase (black granite) on Y axis – worktable with clamping fixture inserts for fixing the parts to be measured • Slideways on X axis – machine bed with Vee-ways made of diabase • Slideways on Y axis – double square-shaped crossrail made of diabase • Sliding of carriage on Y axis – on a large bearing surface in a perfectly symmetric position • Z axis – also this in a perfectly symmetric and barycentric position as to the Y axis • Slideway and quill on Z axis – made of high-resistant carbon fibre, square-shaped • Sliding of all axes on high-precision air-bearings • All travel motions are held up These peculiar structural solutions allow stable performances which are repeatable over a long time. The entire machine structure, including the supporting columns on the Y axis, is made of granite. The slideways of the X axis are located externally to the worktable and its Vee-shaped construction eliminates any slack during travel. The slideways of the Y axis, which consist of a double crossrail, ensure a wide bearing surface. The perfectly barycentric position of the Z axis reduces the possibility of rolling,pitch and yawing errors. The use of carbon fibre for the quill of the Z axis makes it very light, extremely stiff and not influenced by any thermo-variations.
