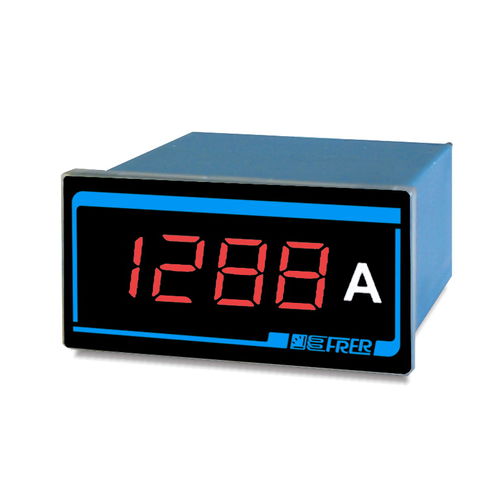

Digital indicator D76 series

positionspeedvoltage

- AC digital Ammeter, 72x36 - TRMS AC digital Ammeter, 72x36 - AC digital Voltmeter, 72x36 - TRMS digital Voltmeter, 72x36 - Digital Frequency meter, 72x36 - DC digital Ammeter, 72x36 - DC digital Voltmeter, 72x36 - Digital indicator for DC inputs (4-20mA - 5mA - 20mA - 10V), 72x36 - Digital indicator for speed measurements, 72x36 - Digital indicator for temperature measurements from PT100 2 wires, 72x36 - Digital indicator for temperature measurements from PT100 3 wires, 72x36 - Digital indicator for Position or Level measurements from potentiometer • max indication ±9990 (D....4) ±1999 (D....5) • red LED display h = 14 mm • bidirectional input (d.c.) yes • operating frequency 45÷65 Hz • continuous overload 2 ln, 1,2 Vn • stantaneous overload 10 ln, 2 Vn • accuracy class 0,5 • readings update 2/s • overrange indication / 1st digit only lighting • galvanic insulation input-aux. supply • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • storage temperature –30 ÷ +70°C • operating temperature –10 ÷ +50°C • self estinguishing thermoplastic material UL 94-V0 • protectionfor housing IP52 • protection for terminals IP10
