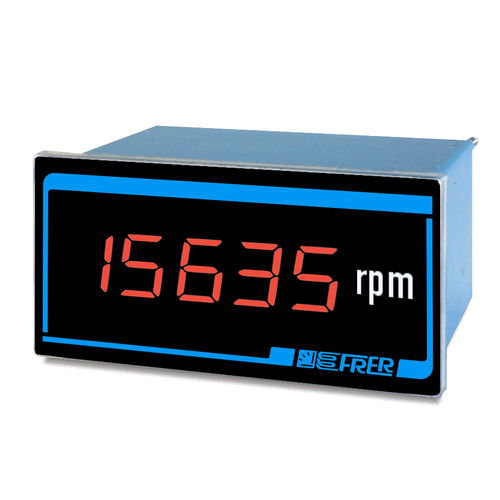

Digital indicator D98 series

positionspeedvoltage

AC digital Ammeter, 96x48 TRMS AC digital Ammeter, 96x48 AC digital Voltmeter, 96x48 TRMS digital Voltmeter, 96x48 Digital Power-Factor meter, single-phase, 96x48 Digital Power-Factor meter, three-phase, 96x48 DC digital Ammeter, 96x48 DC digital Voltmeter, 96x48 Digital indicator for DC inputs from transducers (4-20mA - 5mA - 20mA - 10V), 96x48 Digital indicator for temperature measurements from PT100 2 wires, 96x48 Digital indicator for temperature measurements from PT100 3 wires, 96x48 Digital indicator for Position or Level measurements from potentiometer, 96x48 • max indication ±19990 • red LED display h = 14 mm • CAP or IND indication (D9...P...3) by frontal LED • bidirectional input (d.c.) yes • operating frequency 45÷65 H • continuous overload 2 ln, 1,2 Vn • istantaneous overload 10 ln, 2 Vn • accuracy class 0,5 • readings update 2/s • overrange indication - 1st digit only lighting D98...5 - D96...5 - flashing dot D98P...3 - D96P...3 • galvanic insulation / input-aux. supply • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • storage temperature –30 ÷ +70°C • operating temperature –10 ÷ +50°C • self estinguishing thermoplastic material UL 94-V0 • protectionfor housing IP52 • protection for terminals IP10
