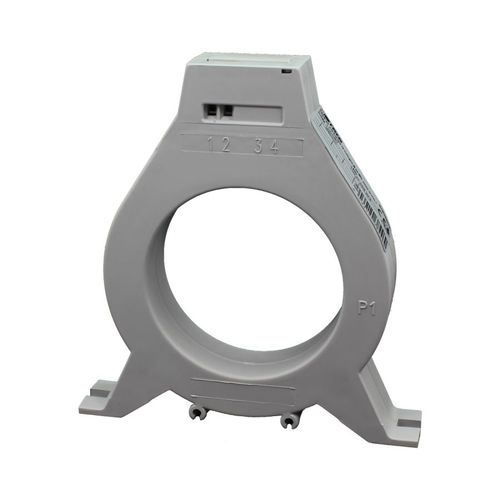

Current transformer TDC060encapsulatedindustrialIEC
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- industrial
- Norms
- IEC, UL
- Protection level
- IP20
- Other characteristics
- toroidal, earth-leakage, closed
- Frequency
Max.: 450 Hz
Min.: 47 Hz
Description
Toroidal Transformer Ø60 for Type A-F Earth Leakage Relays
• thermoplastic material UL 94
• nominal frequency 47...450Hz
• operating frequency 25...10kHz -3dB
• power-frequency withstanding voltage 3kV 50Hz, 1 min.
• installation category CAT. III 600V rinforzato/renforced
• protectiondegree IP20
• short term overcurrent 6 In (2 s)
• operating temperature 0...+50°C, U.R. / R.H. <90% n.c.
• storage temperature -20...+70°C
• connections a vite / screw, max1.6mmq / sqmm
• according to IEC 60947-2
