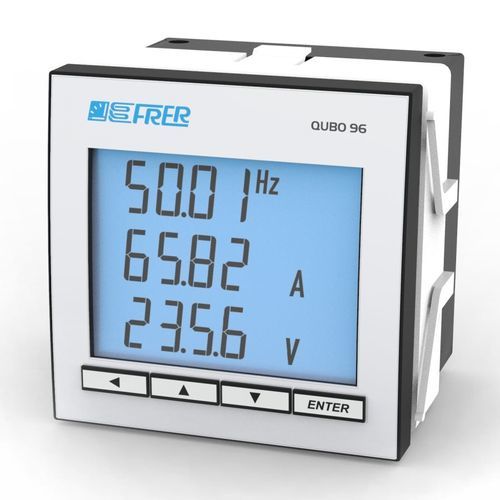

Single-phase electrical network analyzer Q96S3L

for electrical networksmonitoringRS485

Multifunction network analyser for use in single-phase systems. It allows the display of the main electrical quantities, including bi-directional active and reactive energy counting and has an additional set of "advanced" measurements that allow more efficient monitoring, or provide additional information on the operating status of the system. A page dedicated to the main measurements simultaneously indicates the A, V and Hz values, thus avoiding having to search for them within the various available pages. As an option, it can be equipped with a communication interface (Modbus RTU - Ethernet - IEC61850 - PROFIBUS), 2 programmable alarm outputs alternatively as pulse outputs for the retransmission of active and reactive energy, or connection to the Analog Outputs modules. - Display of main electrical quantities - Bi-directional active and reactive energy counting - Advanced measurements for efficient monitoring - Simultaneous display of A, V, and Hz values - Optional communication interfaces: Modbus RTU, Ethernet, IEC61850, PROFIBUS - 2 programmable alarm outputs (can be used as pulse outputs) - Connection to Analog Outputs modules Technical specifications / Features: - Panel size: 96x96 mm - Single-phase system compatibility - Multifunction network analyser - Supports advanced monitoring and diagnostics - Expandable with communication and output modules
