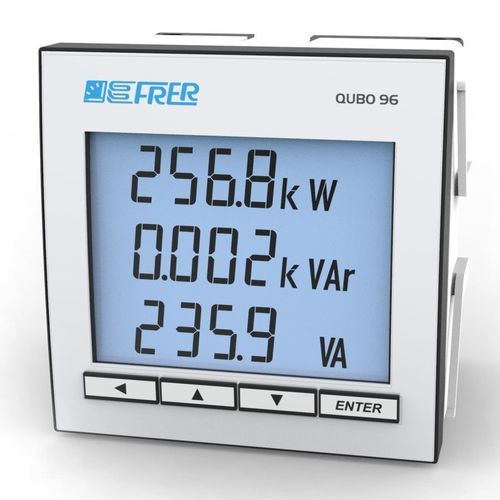

Multifunction power metering Q96P3H

Description
Multifunction analyzer for use in three-phase, 3- or 4-wire systems with unbalanced loads and distorted waveforms for LV/MV networks. In addition to the main electrical quantities (including bidirectional active and reactive energy counting), it provides an additional set of advanced measurements that enable more efficient monitoring and give further insight into system operating conditions.

Key features

• Measurement of primary electrical quantities (voltages, currents, powers, power factors).
• Bidirectional active and reactive energy counting.
• THD (Total Harmonic Distortion) measurement.
• Designed for three-phase 3- or 4-wire systems, including unbalanced loads and distorted waveforms.

Communications and outputs

• Optional communication interfaces: Modbus RTU (RS485), Ethernet, IEC61850, PROFIBUS.
• 2 programmable alarm outputs, alternatively configurable as pulse outputs for retransmission of active and reactive energies.
• Possible connection to Analog Output modules.

Available documentation

• Datasheet.
• User manual.
• Communication protocol documents (including Modbus RTU, Ethernet, PROFIBUS specifics).
• Options catalogue.
• Technical drawings (DWG and PDF).

Technical specifications

• Model designation: Q96P3H (QUBO 96 series / 96×96).
• Front panel size: 96 × 96 mm (panel mounting).
• Application: Three-phase network analyzer for LV/MV.
• Rated voltage: 100 – 400 V (according to product sheet).
• Current measurement range (direct input or via CT): 1 – 5 A (according to product sheet).
• THD measurement and handling of distorted waveforms.
• Energy counting: bidirectional active and reactive.
• Additional set of advanced measurements for extended system status monitoring.
• Optional interfaces: RS485 Modbus RTU, Ethernet, IEC61850, PROFIBUS.
• Outputs: 2 programmable alarm outputs or pulse outputs for energy retransmission; integration with analog output modules.
• Compliance/standards: CEI 0-16 (as indicated in product sheet).
• Technical documentation available: datasheet, user manual, communication protocols and technical drawings.
