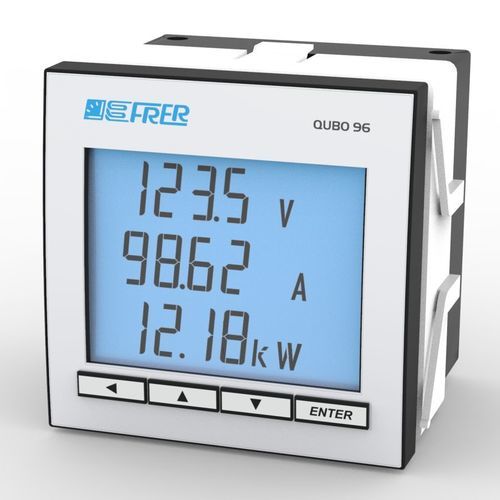

Monitoring analyzer Q96C3L

DC electrical networkfor networksdesktop

Multifunction analyser for use in DC systems. The voltage input is directly connected to the line, while the proportional current input is derived from shunts. The primary current value can be set via a simple programming menu. It has the main quantities of a DC power grid, including bi-directional energy counting and Ah, and an additional set of advanced measurements that allow more efficient monitoring or provide additional indications of the operating status of the system. As an option, it can be equipped with a communication interface (Modbus RTU - Ethernet - IEC61850 - PROFIBUS), 2 alarm outputs that can alternatively be programmed as pulse outputs for energy and Ah retransmission, or connection with Analog Output modules. - Bi-directional energy counting and Ah - Advanced measurements for efficient monitoring - Optional communication interfaces: Modbus RTU, Ethernet, IEC61850, PROFIBUS - 2 alarm outputs programmable as pulse outputs - Connection with Analog Output modules Technical specifications / Features: - Panel size: 96x96 mm - Direct voltage input connection - Current input via shunt - Programmable primary current value - Advanced DC grid measurements - Optional communication interfaces: Modbus RTU, Ethernet, IEC61850, PROFIBUS - 2 programmable alarm/pulse outputs - Analog Output module connectivity
