Earth-fault detector X72UB6

Product overview

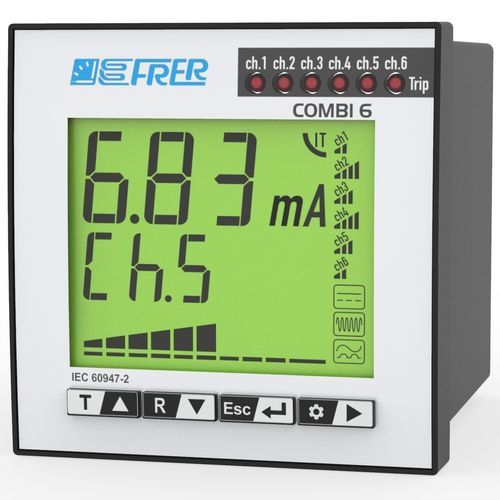

The COMBI 6 multi-channel earth leakage relay X72UB6 is designed to monitor and protect up to 6 independent electrical systems. The 72x72 instrument concentrates multiple inputs in a compact footprint and streamlines wiring thanks to withdrawable terminal blocks. The front panel provides direct access to programming via four keys and a copy/paste function in the settings menu. A dedicated channel-scroll push button selects the input shown on the display; on trip the instrument automatically shows the last tripped channel and lights the corresponding LED. Available in Type B, Type AF, or Mixed B/AF configurations (5 input combinations).

Main features

• Monitoring and protection of up to 6 independent systems
• Compact front size: 72x72 mm
• Withdrawable terminal blocks for simplified wiring
• 4 front keys for direct programming; copy/paste in settings
• Dedicated push button to scroll/select channels on display
• Automatic display of last tripped channel with LED indication
• Available versions: Type B only; Type AF only; Mixed B/AF (5 input combinations)

Technical specifications

• Model: X72UB6
• Product family: COMBI 6 Multi-Channel Earth Leakage Relay
• Type: Type B (also available Type AF and Mixed B/AF)
• Channels: up to 6 independent inputs
• Instrument size: 72x72 mm
• Connections: withdrawable terminal blocks
• User interface: 4 front programming keys; copy/paste in settings menu
• Channel navigation: dedicated scroll push button
• Trip indication: display shows last tripped channel; corresponding LED indicator
• Mixed version: 5 different input combinations
