Earth-fault detector X72UX6

Product overview

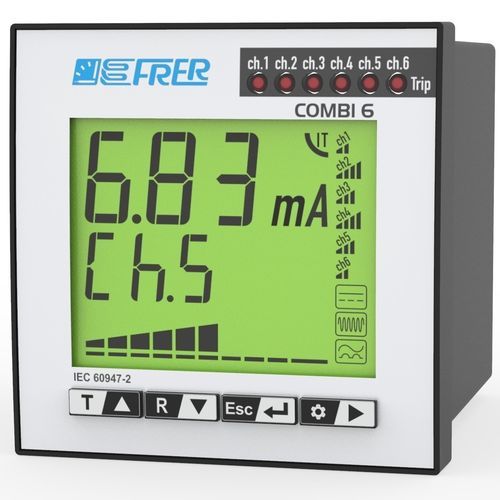

The COMBI-6 multichannel earth leakage relay X72UX6 monitors and protects up to 6 independent earth-leakage circuits. The compact 72x72 mm panel instrument reduces footprint and simplifies wiring with withdrawable terminal blocks. The front panel provides 4 programming keys, a dedicated channel-scroll push button and a copy/paste function in the settings menu. On trip, the display automatically shows the last tripped channel and the corresponding channel LED lights up. Available in Type B, Type AF and Mixed B/AF with five input combinations.

Key features

• Monitoring and protection of up to 6 independent earth leakage circuits
• Compact 72x72 mm panel size
• Withdrawable terminal blocks for simplified wiring and maintenance
• 4 front programming keys for direct configuration
• Copy/paste function in settings to accelerate setup
• Dedicated channel-scroll push button to select displayed input
• Automatic display of the last tripped channel with per-channel LED indication

Available versions

• Type B only
• Type AF only
• Mixed B/AF (5 different input combinations)

Documentation
Datasheet, user manual and technical drawings available on request.

Technical specifications

• Model: X72UX6
• Panel size: 72 x 72 mm
• Channels: up to 6 independent systems
• Terminal type: withdrawable terminal blocks
• Front interface: 4 programming keys + dedicated channel-scroll button
• Display behavior: shows selected input; on trip shows last tripped channel automatically
• Visual indication: LED per channel to indicate trip
• Configuration aid: copy/paste in settings menu
• Product variants: Type B, Type AF, Mixed B/AF (5 input combinations)
• Intended use: monitoring and protection of multiple earth leakage circuits
