Earth-fault detector X52UX6

Overview

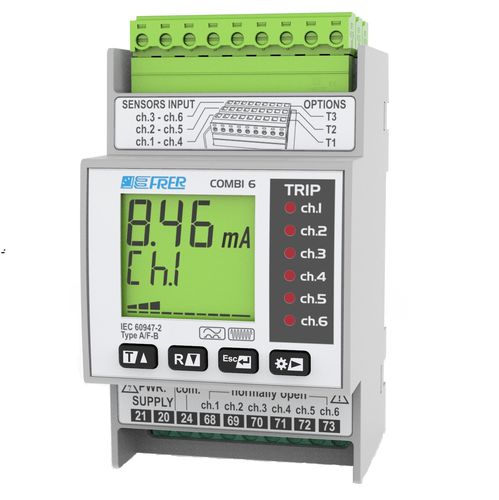

The COMBI 6 multichannel earth leakage relay X52UX6 is designed for monitoring and protecting up to six independent systems. The compact 3 DIN-module instrument reduces panel space and simplifies wiring with withdrawable terminal blocks. The front panel offers four keys for direct programming and a copy/paste function in the settings menu. A dedicated channel-scroll button selects the input to display; on trip the display automatically shows the last tripped channel and the corresponding LED lights.

Versions

• Type B only
• Type AF only
• Mixed B/AF available with five input combinations: 1-5, 2-4, 3-3, 4-2, 5-1

Available documentation

• Data sheet (PDF)
• User manual (PDF)
• Technical drawings (DWG, PDF, STP)

Multimedia

• Product videos available (official channel)

Technical specifications

• Function: Multichannel earth leakage relay for monitoring and protection
• Model: X52UX6
• Series: COMBI 6
• Number of independent inputs/channels: up to 6
• Instrument size: 3 DIN modules
• Connection: withdrawable terminal blocks for simplified wiring
• Front interface: 4 front keys for programming; copy/paste function in settings
• Channel selection: dedicated push button to scroll and select input to display
• Trip indication: display shows last tripped channel automatically; corresponding LED ON
• Available versions: Type B, Type AF, Mixed B/AF (multiple input combinations)
• Documentation: data sheet, user manual, technical drawings
