Oil tank

for refrigeration systemsstainless steelcarbon steel

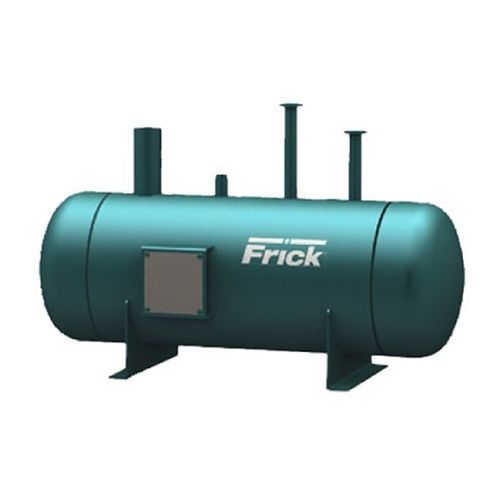

Reliable small diameter pressure vessels Frick Horizontal Oil Pots are engineered for clean and safe operation in your facility. With an 8-12 inch diameter and up to 36 inch length, our Horizontal Oil Pots are smaller pressure vessels that collect oil rich refrigerant which can accumulate in your refrigeration system. ASME certified and designed specifically for use with ammonia, Frick Horizontal Oil Pots feature high-quality, corrosion-resistant epoxy paint for longer lasting equipment life and better cost savings. Certified and built to the ASME BPVC Section VIII-1 Code 450 psi maximum allowable working pressure at 250°F Optional (ship loose) immersion heater with thermostat for low temperature applications Horizontal Oil Pots Frick oil pots are small diameter ASME certified pressure vessels that collect a mixture of refrigerant and oil that can accumulate at various points in an ammonia refrigeration system. This single collection point facilitates the separation of the refrigerant from the oil and the removal of the oil from the oil pot. Features -55°F minimum design metal temperature at 450 psi for carbon steel Designed to include 1/16 in. corrosion allowance with carbon steel option. -155°F minimum design metal temperature at 450 psi for stainless steel Configurable Optional arrangements available Peace of Mind Certified and built to the ASME BPVC Section VIII-I Code Material Choose from Carbon steel (CS) or stainless steel (SS) Provides inherit corrosion resistant properties with stainless steel option
