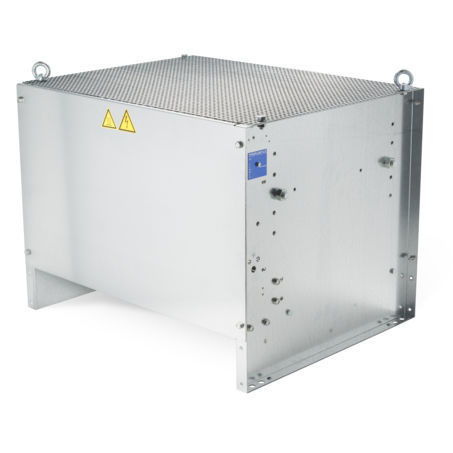

Insulated resistor F series

wire-woundvariablefloor-standing

Steel-grid resistor unit, degree of protection IP 20. In completely closed zinc sheet enclosure with stationary safety guard at the top and bottom. Ceramic insulated flat or bolt terminals of 35 A up to 87 A in variable combinations for star and delta wiring are possible. special features • continuous dissipation • switchable in parallel for higher continuous dissipation • for floor-level mounting or for mobile applications optional with handgrip and steering rolls example of use An important application is the use as economic load resistor. Protection degree IP 20 is sufficient for installing in factory rooms, IP 23 is necessary for outdoor location. Options • different power steps or combinations with higher power possible • connection parts and enclosure out of stainless steel 1.4301 • mobile, for test area • consoles for wall installation • CEE-plug with cable and holder
