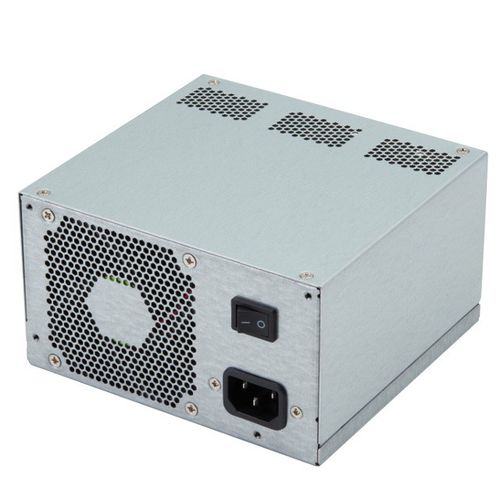

Low-noise level power supply FSP500-80AGGBM(M)
with overcurrent protectionwith overheating protectionfor automation

low-noise level power supply
low-noise level power supply
Add to favorites
Compare this product


Characteristics

Other characteristics
low-noise level, with overcurrent protection, with overheating protection, for automation, for telecommunications equipment, server, workstation, switching
Power

500 W

Input voltage

Min.: 90 V

Max.: 264 V

Output voltage

-12 V, 3.3 V, 5 V, 12 V

Current

Min.: 0 A

Max.: 21 A

Description

Feature - Internal 8 cm fan at output side for better acoustic quality - Low Ripple & Noise - Support OCP, OTP and OVP circuit protection - Short circuit protection on all outputs - Resettable power shut down - 100% Hi-pot tested - MTBF:100K hours at 25°C - 100% burn-in under high ambient temperature (50°C) Introduction FSP500-80AGGBM(M) is an industrial level of switching power supply. The power supply comes to offer easy maintenance and the total power capacity up to 500 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
