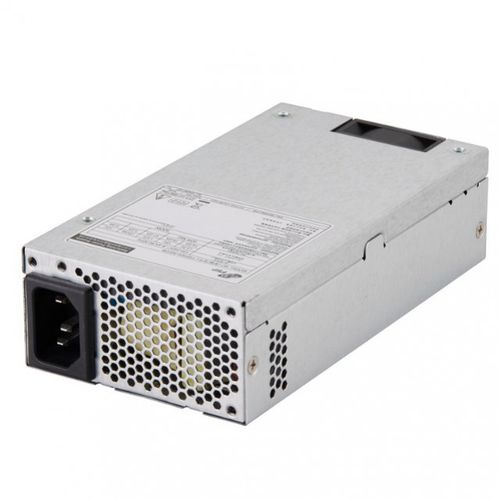

Switching power supply FSP400-50FDB
with overheating protectionwith short-circuit protectionwith overcurrent protection

switching power supply
switching power supply
Add to favorites
Compare this product


Characteristics

Technology
switching
Protection
with overheating protection, with short-circuit protection, with overcurrent protection
Features
1U
Applications
server, for telecommunications equipment, for automation, for industrial applications
Input voltage

Min.: 90 V

Max.: 264 V

Output voltage

-12 V, 3.3 V, 5 V, 12 V

Current

Min.: 0 A

Max.: 33 A

Power

400 W

Description

Feature - Internal 4 cm fan at output side for better acoustic quality - Low Ripple & Noise - Support OCP, OTP and OVP circuit protection - Short circuit protection on all outputs - Resettable power shut down - 100% Hi-pot tested - MTBF:100K hours at 25°C - 100% burn-in under high ambient temperature (50°C) Introduction FSP400-50FDB is an is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 400 Watts, which makes it to be perfectly fit in a standard 1U server chassis, and used in an industrial or small space environment. In addition, the power supply is ideally the best choice for server, communication or any other automation applications. This product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
