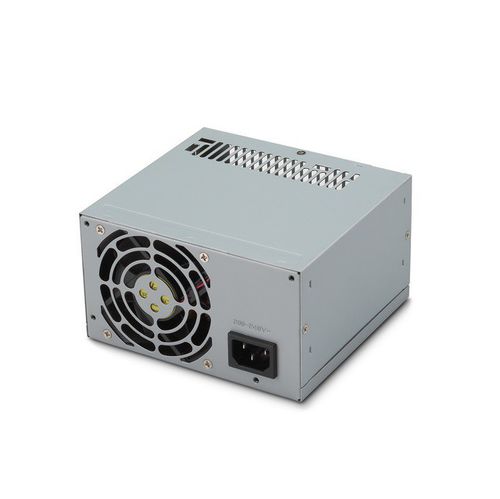

Switching power supply FSP300-40PFB
with short-circuit protectionCEserver

switching power supply
switching power supply
Add to favorites
Compare this product


Characteristics

Technology
switching
Protection
with short-circuit protection
Certifications
CE
Applications
server, workstation, for telecommunications equipment, for automation, for industrial applications
Other characteristics
with power factor correction (PFC), low-noise level
Input voltage

Max.: 264 V

Min.: 90 V

Output voltage

-12 V, -5 V, 5 V, 12 V

Current

Max.: 40 A

Min.: 0 A

Power

300 W

Description

Feature - Low Ripple & Noise - Output over voltage protection - Short circuit protection on all outputs - Resetable power shut down - 100% burn-in under high ambient temperature(50℃) - Vacuum-impregnated transformer - MTBF:100K hours at 25℃ - 100% Hi-pot tested - line input fuse protection Introduction FSP300-40PFB is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 300 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
