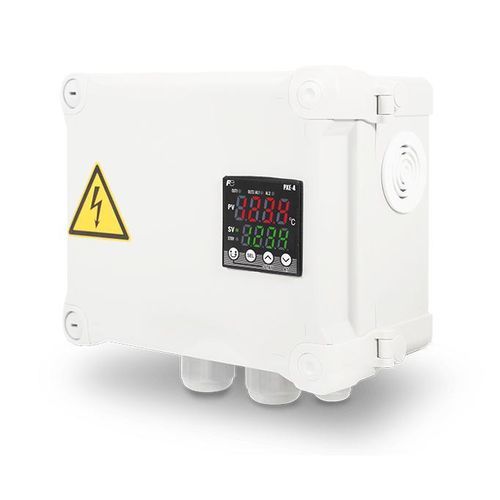

Digital temperature control unit EDS11-COF

dual-displaysingle-channelPID

COST-EFFECTIVE SINGLE-PHASE TEMPERATURE CONTROL PANEL
A SIMPLE AND RELIABLE SOLUTION TO MASTER YOUR INDUSTRIAL HEATING

The cost-effective single-phase temperature control panel is designed to control industrial heating applications with precision while remaining affordable and easy to deploy. Compact, robust and ready to use, it combines control performance, simple installation and reliability for industrial environments.

FEATURES OF THE COST-EFFECTIVE SINGLE-PHASE TEMPERATURE CONTROL PANEL

• 230 VAC single-phase power supply, 50/60 Hz
• Maximum power of 3.5 kW
• Integrated Fuji Electric PXE PID controller
• Measurement inputs compatible with J, K, R, B, S, T, E, N, PLII thermocouples and PT100 sensor
• 25 A solid-state relay for power switching
• IP30 protection rating
• Dual 4-digit, 2-color digital display
• 1 configurable visual alarm
• Protection by 20 A curve C Uni+N circuit breaker
• Wall mounting with included fixing kit
• Compact PVC enclosure
• Dimensions: 192 x 164 x 105 mm

APPLICATIONS
This panel is suitable for heating element control, frost protection, temperature maintenance of networks and tanks, and thermal regulation of industrial equipment in sectors such as chemicals, food processing, plastics, water treatment and HVAC.

ADVANTAGES

• Integrated PID control for accurate temperature regulation
• Fast installation and commissioning
• Cost-effective solution without compromising reliability
• Compact design for easier integration
• Robust construction for industrial environments
• Fuji Electric components known for their performance
• Enhanced safety thanks to magneto-thermal protection
• Solid-state relay without moving parts for long service life
