Digital temperature controller PXR3 ON/OFF

IP66NEMA 4Xrobust

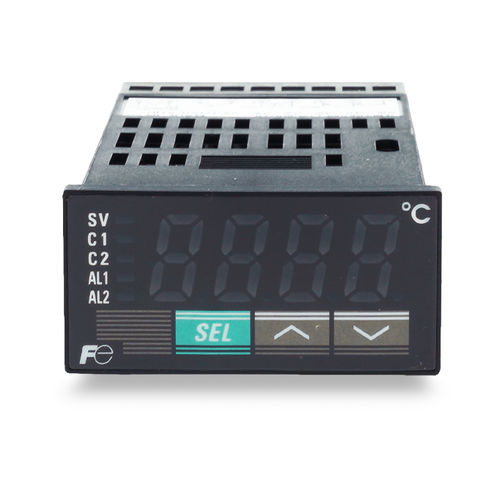

ON OFF THERMOSTAT CONTROLLER – PXR3
SIMPLE, RELIABLE AND COMPACT TEMPERATURE CONTROL

The PXR3 on off thermostat controller is designed to control process temperature simply across a wide range of industrial applications. Compact, robust and easy to install, it delivers efficient control while providing reliable alerting when the setpoint is reached.

PXR3 FEATURES

• On off temperature control
• Input compatible with thermocouple or thermistor
• Relay contact control output
• 4 digit display
• Compact 48 × 24 mm format
• 100 to 240 V AC power supply
• Measurement accuracy of ± 0.5 percent of full scale
• 2 s sampling cycle
• Optional logic outputs
• European type terminal block connection

APPLICATIONS
The PXR3 is well suited to temperature control for industrial equipment and to applications requiring reliable detection of deviations or overtemperature conditions, especially in demanding environments.

BENEFITS

• Simple installation and operation
• Lightweight design and compact footprint
• Reliable and robust
• Suitable for different temperature sensor types
• Efficient and cost effective solution for essential control
