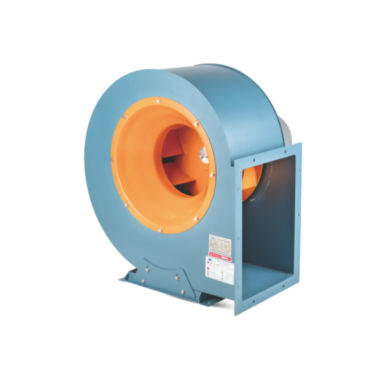

Floor-standing fan DKF series

centrifugalcoolingdrying

SERIES BACKWARD-STYLE CENTRIFUGAL FAN DKF series backward-style centrifugal fan is according to the barn to high pressure, high air volume design requirements; motor is with aluminum alloy shell, class h high temperature resistant insulating materials manufacturing; fan structure includes double impeller and stator impeller components; fan blade adopts skewed swept blade, so that the gas in the movement process of continuous enhanced axial pressure to meet the use of agricultural and sideline products with high density in the baking room. The fan has the advantages of high pressure resistant, high air quantity, convenient installation, etc.; for in all kinds of barn and mines, tunnel, basement, underground conduit of lampblack, factories and so on place of remote air. APPLIED CONDITIONS Max. Ambient Temp:<130℃，Relative humidity:≤98%, In the ambient of weak acid, weak alkali, vapor and no flammable gas, the motor can be also used in the vacuum drying equipment according to the specific conditions STANDARD FORM Rated voltage: 220V, 220/440V , 220/380/660V 230/400/690V , 240/415/720V Rated frequency: 50Hz/60Hz Working Method: Continuous (S1) running Cooling Method: IC411 Protection Class: IP54/IP55 Insulation Class: Class B (80℃),Class F (120℃), Class H(180℃)
