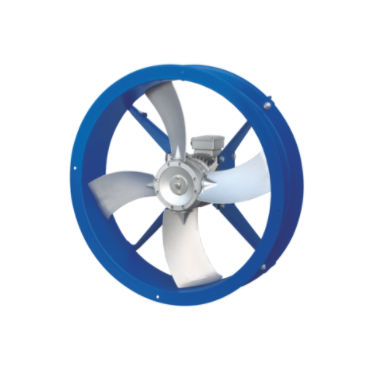

Axial fan GKF series

exhaustdryinghigh-temperature

SERIES HIGH TEMPERATURE HIGH HUMIDITY AXIAL FAN GKF series high temperature high humidity axial ventilator fan is widely used in the painting, smoke leaf baking,wood drying, production of rubber, production of pharmaceuticals. About vented exhaust, the fan can be used in the lots of high temperature and high humidity environment, for example:the factory, the workshop, the office, the warehouse, the basement. The axial fan is a unidirectional vented exhaust equipment, with a with novel structure and high performance.The fan has characteristic of resistanting to high-temperature, large air volume, high pressure, energy-efficient, low noise, convenience maintenance, etc. As a gas transportation fan without corrosive gas, palpable & gray scale, the gas has no more than 150mg/m³ dust and hard particles. As the blades diameter is different, there are 11 model, NO.2.5、3、 3.5、4、5、5.5、6、7、8、9、10.The angle of fan can be adjusted according to the clients' requirements. The fans blades can be direct connected with the motor. The circumferential velocity of the impeller does not exceed the condition, there are three different rotational speed: 2900r/min、 1450r/min、 960r/min. When face of the air inlet, the blades are counterclockwise rotation. Since the frame size and the blades diameter are different, the installation angle of the blades, speed of main shaft is different. Air flow, air pressure and motor output are different. The air pressure from 50Pa to 400Pa, the air flow from 1000m³/h to 45000m³/h.(details as per performance table )
