Axial fan FA series coolingexhaustexhaust
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling, exhaust, exhaust, drying
- Other characteristics
- laboratory, motor
- Air flow
Min.: 1,200 m³/h
(42,377.6 ft³/h)Max.: 22,800 m³/h
(805,174.401 ft³/h)
Description

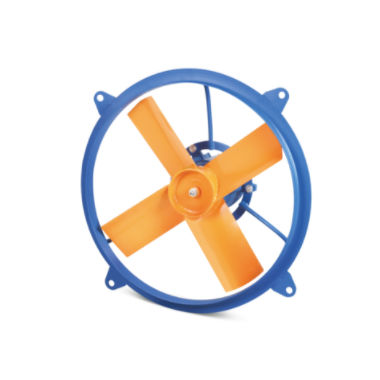

SERIES AXIAL EXHAUST FAN
FA/FTA series single/three phase axial-flow exhaust fans are suitable for dehydration drying of the edible fungi, woods, medical materials, tobacco, seafood etc. In the factory, warehouse, basement, laboratory, kitchen.
APPLIED CONDITIONS
Max. Ambient Temp:<90℃，Relative humidity:≤98%, In the ambient of weak acid, weak alkali, vapor and no flammable gas, the motor can be also used in the vacuum drying equipment according to the specific conditions
STANDARD FORM
Rated voltage: 220V, 220/440V , 220/380/660V
230/400/690V , 240/415/720V
Rated frequency: 50Hz/60Hz
Working Method: Continuous (S1) periodic running in
positive and opposite directions
Cooling Method: IC411
Protection Class: IP54
Insulation Class: Class B (80℃),Class F (120℃)
