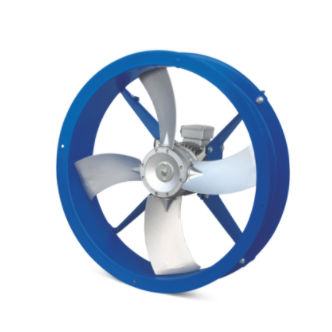

Axial fan GKF(KY) series
coolingdryingaluminum

axial fan
axial fan
axial fan
axial fan
axial fan
axial fan
axial fan
Add to favorites
Compare this product


Characteristics

Configuration
axial
Function
cooling, drying
Material
aluminum
Other characteristics
IP54, motor
Air flow

Max.: 27,000 m³/h
(953,496.001 ft³/h)

Min.: 3,000 m³/h
(105,944 ft³/h)

Description

SERIES SERIES AXIAL FAN WITH TOBACCO BAKING SPECIFIC GKF(KY) series tobacco baking special fan is special designed for tobacco flue-curing, the insulation class of which motor is class F and class H. It has remarkable characteristics of high temperature resistance, high humidity resistance, high efficiency, large air quality, low noise, energy saving etc., the fans is used by four panels arc aluminum blades, and the angle of can be adjusted the air volume according to the clients' requirements. It is widely operated in the high temperature/humidity places of tobacco Leaf flue-curing or wood drying kiln. APPLIED CONDITIONS Max. Ambient Temp:<130℃,Relative humidity:≤98%, In the ambient of weak acid, weak alkali, vapor and no flammable gas, the motor can be also used in the vacuum drying equipment according to the specific conditions STANDARD FORM Rated voltage: 220V, 220/440V220/380/660V 230/400/690V , 240/415/720V Rated frequency: 50Hz/60Hz Working Method: continuous (S1) running Cooling Method: IC411 Protection Class: IP54/IP55 Insulation Class: Class F (120℃), Class H(180℃)
