Radial fan C 600

extractionACfor small rooms

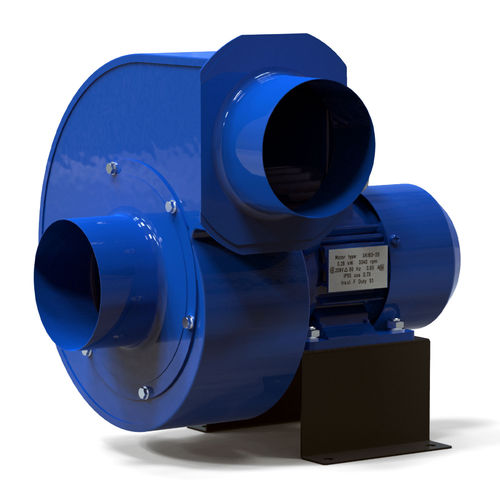

The Fumex C 600 is a compact and sturdy centrifugal fan designed for smaller industrial applications. It can be installed both indoors and outdoors and is developed for the extraction of non-explosive gases, fumes and lighter particles. With airflow capacity of up to 600 m³/h (165 l/s), it is well suited to systems where reliable performance is required in a compact format.

The fan is equipped with a forward-curved impeller and is optimized for use together with Fumex systems for fume extraction and automatic control. It is available in both 1-phase and 3-phase versions, making it suitable for different installation requirements.

C 600 is supplied fully equipped with a bracket for easy installation. The sheet metal parts are powder-coated and electro-galvanized, while the motor has enclosure class IP55. The fan is designed for a maximum air temperature of 80 °C and a maximum ambient temperature of 40 °C.

The Fumex C 600 offers a practical and efficient fan solution for smaller extraction systems in industrial environments.
