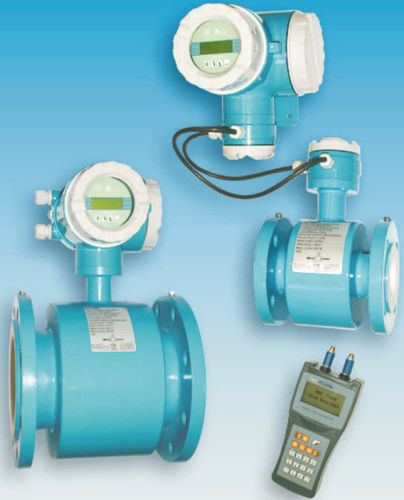

Electromagnetic flow meter RPMAG for conductive liquidsDN50 - 2"DN100 - 4"
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic
- Fluid
- for conductive liquids
- Pipe diameter
- DN50 - 2", DN100 - 4", DN80 - 3", DN25 - 1", DN15 - 1/2", DN40 - 1"1/2, DN20 - 3/4", DN65 - 2"1/2, DN32 - 1"1/4, DN60 - 2"1/4, DN90 - 3"1/2
- Installation
- flange
- Material
- aluminum
- Protection level
- IP67, IP68
- Applications
- for the pharmaceutical industry, for water treatment, for the food industry
- Other characteristics
- compact, with battery
- Volumetric flow rate
Max.: 70,000 m³/h
(2,472,026.7 ft³/h)Min.: 0.6 m³/h
(21.2 ft³/h)- Process temperature
80 °C, 100 °C, 150 °C, 180 °C
(176 °F, 212 °F, 302 °F, 356 °F)- Precision
0.2 %
- Repeatibility
0.07 %
Description
Electromagnetic flowmeter consisting of a sensor and a transmitter.
The flowmeter is used to measure volumetric flowrate for conductive liquids and pulps.
Several output signals are available.
The main applications can be found in the following fields: chemical industry, power generation and distribution, mine, water treatment, paper industry, pharmaceutical industry, food and environmental protection.
The measurement is independent (>5μS/cm) of the density, viscosity, temperature, pressure and conductivity of the measured fluid.
Available, upon request, MID approved version.
Available, upon request, Lithium battery powered version.
