AC/DC power supply / closed frame / programmable / battery charger
HPFF8

{{requestButtons}}

Characteristics

  • Type:

    AC/DC

  • Other characteristics:

    closed frame, programmable, battery charger

  • Input voltage:

    Max.: 220 V

    Min.: 120 V

Description

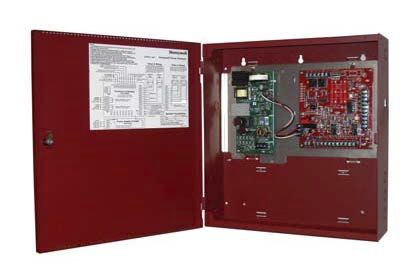

The HPFF8 is a Notification Appliance Circuit (NAC) expansion panel designed to extend the power capabilities of existing NACs and provide power for auxiliary devices. The HPFF8 connects to any 12 or 24V Fire Alarm Control Panel (FACP) or the power supply may stand alone.
Four (4) power-limited supervised notification application circuits (NAC's) capable of supplying 24VDC at 3.0 amp maximum per output.
Eight diagnostic status LEDs for quick troubleshooting
Trouble Memory feature for intermittent fault conditions
Programmable End-of-Line Retrofit feature
Temporal coding and sync protocols compatible with the most common notification appliance brands.
Protocol pass-through for synchronizing large systems.
Two fully independent supervised input/output control circuits.
2.0 amp auxiliary continuously supplied output.
Separate Trouble and AC Fail Form-C relay contacts.
26 Ah battery charger capability (Cabinet supports two 12V 18Ah batteries)
