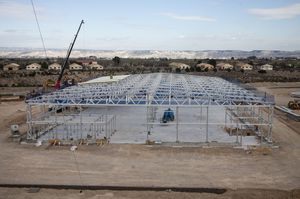

Modular warehouse

aviationstoragealuminum

Gaptek is a leader in the construction of MRO hangars through a modular technology that can adapt to all the demanding needs in the aeronautics sector, both civil and militar Gaptek offers two base models depending on the type of structure. Every model has different characteristics and options that our engineering department can adjust to develop a solution tailored to your company’s requirements. Technical specifications Dimensions: Unlimited Assembly time: 3 months (civil work) + 3 months (assembly) Construction system: Gaptek Flat Required cementation: Yes Uses: Storage Executive aviation Hangar assembly MRO Painting Structure: Structure assembly: Mechanical joints Material: High resistance alloy aluminum AW-6082-T6 Warranty: 20 years Standard Resistances: Wind Standard: 120 km/h Fire Standard: REI30 Snow Standard: 0.75 KN/sqm Climate conditions: -20 ºC to 55ºC Earthquake Standard: 0.1 g Envelope: Exterior: Corrugated metal sheet, high-resistance tensile canvas or panel insulation Interior: Rock wool sandwich panel Certifications: ISO 9001:2015 in Quality Management System UNE-EN ISO 14001 in Environmental Management UNE-ISO/IEC 27001 in Information Security Management ISO 45001:2018 in Occupational Health and Safety Management System CE Marking in all materials, including EN-1090 in relation to steel and aluminum structures
