Modular building

for workshopsISO 14001aluminum

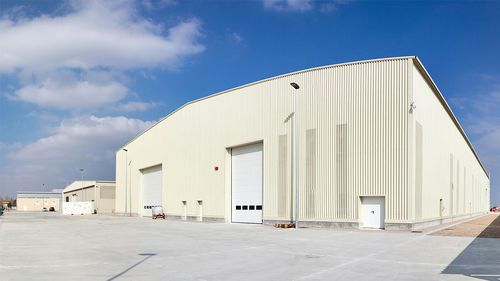

Specifically arranged for maintenance activities, the engine workshop has the capacity to incorporate bridge cranes and other elements Thanks to the Gaptek technology, the engine workshop building can be escalated until it reaches as much area as you need and cover a wide variety of configurations. Furthermore, additional modules can be installed in the interior or exterior as supportive buildings such as offices. Designed for a major MRO efficiency, this building is made of a Gaptek Flat structure with scalable gantries and purlins. The workshops are made to withstand high tonnage bridge cranes. The exterior envelope is made of a corrugated steel sheet and the interior envelope is composed of rock wool sandwich panels, which provides higher insulation and comfort. Technical specifications Dimensions: Unlimited Assembly time: Depending on dimensions Construction system: Gaptek Flat Required foundation: Yes Structure: Structure assembly: Mechanical joints Material: High resistance alloy aluminum AW-6082-T6 Warranty: 20 years Standard Resistances Wind Standard: 120 km/h Fire Standard: REI30 Snow Standard: 0.75 KN/sqm Climate conditions: -20 ºC to 55ºC Earthquake Standard: 0.1 g Envelope: Exterior: Corrugated metal sheet, high-resistance tensile canvas or insulation panel Interior: Rock wool sandwich panel Certifications: ISO 9001:2015 in Quality Management System UNE-EN ISO 14001 in Environmental Management UNE-ISO/IEC 27001 in Information Security Management ISO 45001:2018 in Occupational Health and Safety Management System CE Marking in all materials, including EN-1090 in relation to steel and aluminum structures
