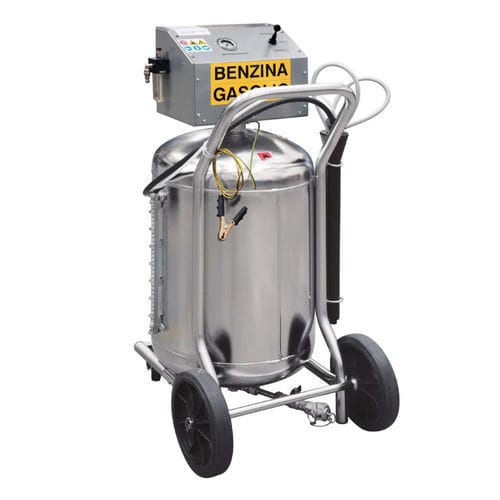

Liquid suction unit V0041/100B

for the automotive industryindustrialmobile

Description
Pneumatic fuel suction unit for gasoline, equipped with a 100 L stainless steel wheeled tank, pneumatic control unit for suction and discharge, visual level indicator and grounding clamp. Designed for safe recovery and transfer of gasoline in workshops, maintenance facilities and industrial environments.

Key technical data
Flow rate: 30 l/min
Operating pressure: 7/100 bar/PSI
Compression ratio: 1:1

Operating fluids

• Hydrocarbons (gasoline)

Features and advantages

• Grounding clamp included: essential for safety when handling gasoline.
• 100 L stainless steel wheeled tank: large capacity and easy mobility.

Application industries

• Automotive workshops
• Industrial maintenance
• Agriculture

Product specifications (table)
Flow rate | l/min | 30
Inlet air connection | 1/4"
Noisiness | dB | 78
Air consumed | l/min | 150
Weight | kg | 53
Packaging | mm | 600X600X1200

Characteristics / Technical specifications

• Article number: V0041/100B
• Model: V0041/100B
• Tank: 100 L stainless steel wheeled tank
• Control: pneumatic control unit for suction and discharge
• Level indicator: visual level indicator
• Grounding: grounding clamp included
• Flow rate: 30 l/min
• Operating pressure: 7/100 bar/PSI
• Compression ratio: 1:1
• Inlet air connection: 1/4"
• Noisiness: 78 dB
• Air consumption: 150 l/min
• Weight: 53 kg
• Packaging dimensions: 600x600x1200 mm
• Operating fluids: Hydrocarbons (gasoline)
