Lubricated vacuum unit ER1202

industrialpneumaticmobile

Description

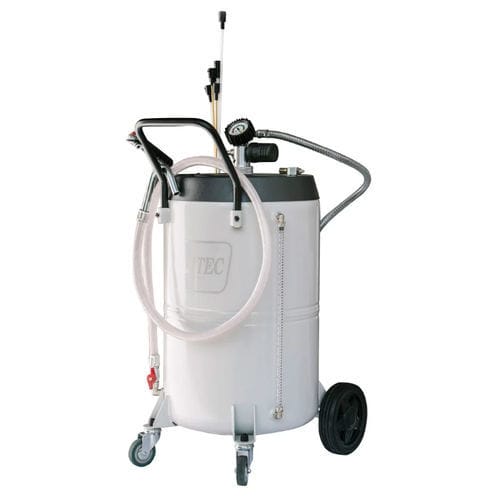

Pneumatic used-oil extractor with a 90 L wheeled tank, Venturi unit, probe and adapter kit, and level indicator. Designed for rapid recovery of used oil in workshops and industrial maintenance environments. Working pressure: 8/116 bar/PSI.

Operating fluids

• Waste oil

Features and advantages

• Suction via probes directly from the engine sump/shaft area without removing the oil pan.
• Probe and adapter kit included; compatible with major vehicle manufacturers.

Technical data
Inlet air connection: 1/4" F
Noisiness: 76 dB
Dimensions (mm): A = 470; B = 630; C = 950
Weight: 21 kg
Packaging: 550 x 560 x 980 mm
Working pressure: 8/116 bar/PSI
Tank capacity: 90 L (wheeled)

Characteristics / technical specifications

• Model: ER1202
• Article number: ER1202
• Working pressure: 8/116 bar/PSI
• Venturi unit (pneumatic)
• Probe and adapter kit included
• Level indicator included
• Inlet air connection: 1/4" F
• Noise level: 76 dB
• Tank capacity: 90 L (wheeled)
• Operating fluids: Waste oil
• Dimensions (A x B x C): 470 x 630 x 950 mm
• Weight: 21 kg
• Packaging dimensions: 550 x 560 x 980 mm
