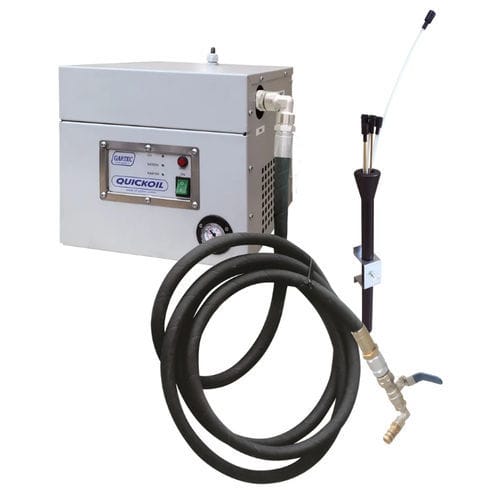

Automatic extraction unit EK3303

for automotive applications

Product overview
Used-oil extraction kit with electric control unit, integrated pump and probe kit, designed for direct extraction from the engine. Version intended for fixed workstations requiring electrical control of the oil change process.

Article number
Art. No. EK3303

Operating fluids

• Waste oil

Features and advantages

• Complete system with a probe kit for direct intake from the engine dipstick/rod.
• Automatic electric control unit with probe connector and shut-off valve included.

Application industries

• Automotive

Technical data (table)
Input connection: 3/4" M
Outlet connection: 3/4" M
Voltage: 230 V
Power: 750 W
Speed: 2900 rpm
Noise level: 75 dB

Dimensions (table)
Weight: 31 kg
Packaging: 600x400x470 mm

Characteristics / Technical specifications

• Model: EK3303
• Article number: EK3303
• Brand: Gartec
• Operating fluids: Waste oil
• Input connection: 3/4" M
• Outlet connection: 3/4" M
• Voltage: 230 V
• Power: 750 W
• Speed: 2900 rpm
• Noise level: 75 dB
• Weight: 31 kg
• Packaging dimensions: 600 x 400 x 470 mm
