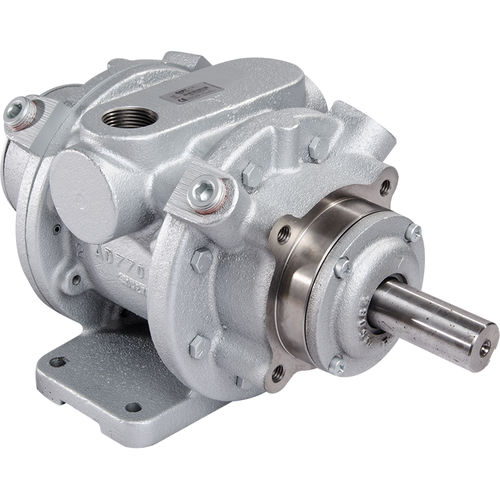

Vane air motor 16AM series

ATEXlubricated

Power 9.5 hp ( 7.1 kW ) Max Speed 2000 rpm Torque @ Max Speed 290 lb-in ( 34 Nm ) Max Air Consumption 275 cfm ( 475.0 m3/h ) Speed @ Max Torque 300 rpm Max Torque 372.0 lb-in ( 43.0 Nm ) Product Details The 16AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations. Mounting Options Gast air motors can operate in any position offering you a great degree of flexibility when mounting the air motor or integrating the air motor into an OEM system. Imperial units are available in foot, face and NEMA 143 and 145TC mounting options. Product Marking This product is marked: II 2 G D c T4 (+1 ℃
